A6 Dualling - Randalstown (M22) to Castledawson



Status
Construction scheme (under construction)
Contractor
Graham/Farrans Joint Venture
Where
To upgrade the A6 from Randalstown to Toome, and from Toome to Castledawson to dual-carriageway (partly online, mostly offline). Existing Toome Bypass to remain as-is.
Total Length

6.8km (4.3 miles) M22 to Toome plus

5.4km (3.4 miles) Toome to Castledawson

Dates

Scheme announced as part of Regional Transport Plan 16 September 2003

A6 Toome Bypass (dual-carriageway) completed - March 2004

Preferred route announced 28 September 2005

Public inquiry held - November 2007; Departmental response to inquiry inspector's report - Autumn 2009

Revised junction designs completed - Jan 2011

Scheme put on hold until at least 2015 - 13 Jan 2011 / confirmed 14 Feb 2012
(changed from "2011" as of Dec 2010, "2011/12" as of Nov 09, "2011" as of Aug 08, and "late 2008" as of Apr 07)

Supplementary Public Inquiry for Bellshill/Annaghmore junction junction held - 13 Feb 2012
Inquiry Report rejects proposals for Bellshill/Annaghmore junction - 23 Jan 2013

Second revised Bellshill/Annaghmore junction designs submitted for planning approval - 5 Jul 2013
Planning granted for revised Bellshill/Annaghmore junction design - 3 Dec 2014
Construction tender process began - 28 Jul 2014; Tender awarded - 1 May 2015
Public Inquiry into Vesting Order for Bellshill/Annaghmore junction - 29 Sep 2015
Scheme given funding - 17 Dec 2015

Legal challenge received to Toome-Castledawson section - 27 Sep 2016; dismissed 27 Mar 2017

Appeal to Legal challenge - 15 Aug 2017; rejected - 19 Sep 2017
Construction was to begin - October 2016 (as of Aug 2016) - but delayed due to legal challenge

Construction to take three and a half years (as of Jan 2016; changed from 24 months as of June 2010)

Work on Randalstown to Toome and Moyola to Castledawson roundabout began - May 2017
Randalstown-Toome due to open "during 2019" (as of May 2017)
Toome-Castledawson due to open "early 2021" (as of May 2017)

Cost

160m (as of Aug 2016)
(changed from 150m as of June 2016; 120-140m as of Nov 2014; 100-120m as of Apr 2010; 100m as of Dec 2008; revised from 70m as of 2006, itself revised from 34m)

Photos / Map
See below for photos and maps.
See Also

M22 on this site

A6 Toome Bypass on this site

A31 Magherafelt Bypass on this site (also ends at Castledawson roundabout)

Official web site on scheme - TransportNI
Contractor's web site on scheme - lots of updates and photos

Click here to jump straight down to scheme updates.

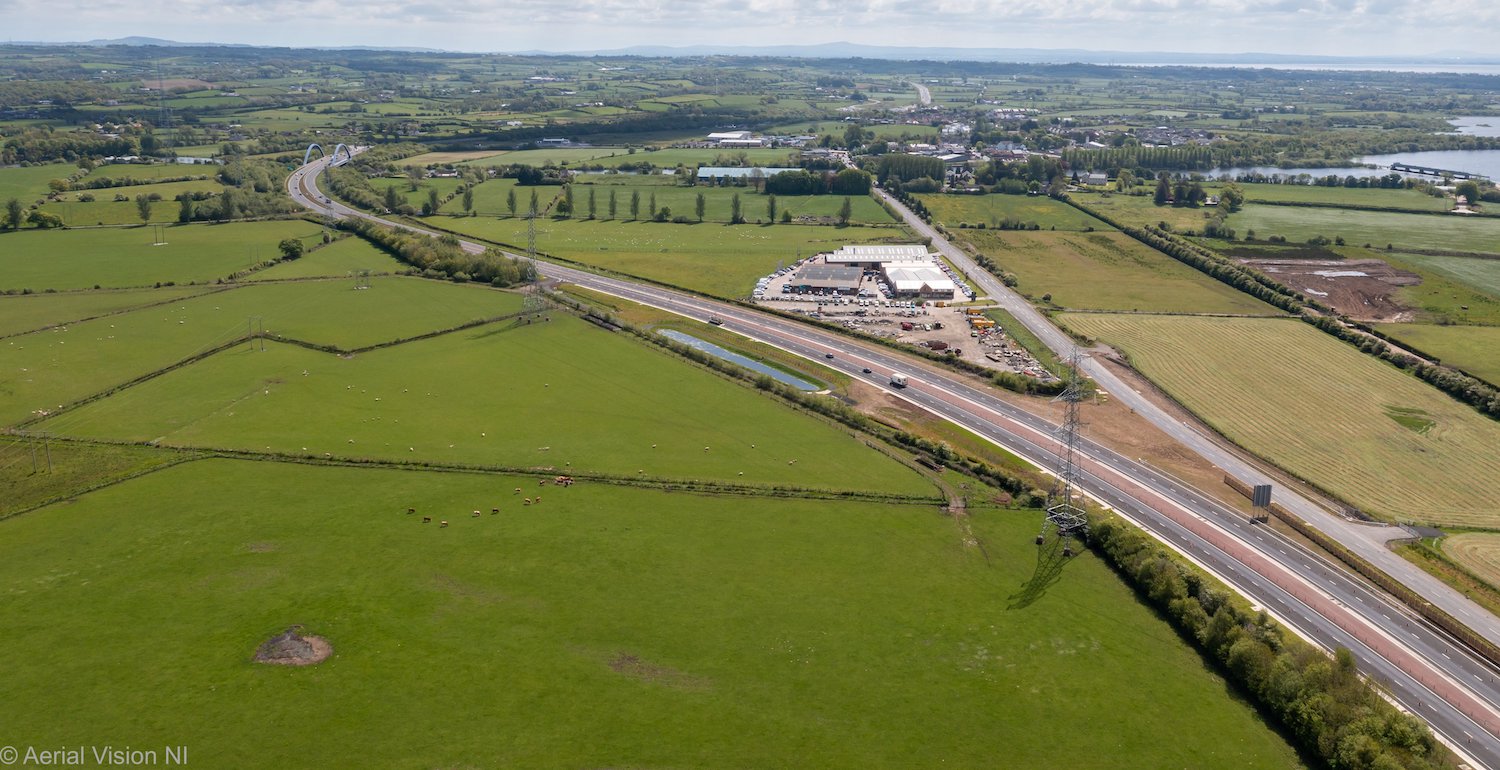

The A6 is single-carriageway from the end of the M22 at Randalstown, to Derry. The most notorious bottleneck, the village of Toome, received a dual-carriageway bypass in 2004. However the roads on each side are still single-carriageway. The purpose of this scheme is to dual approximately 12km of the A6 from the M22 to the start of the Toome Bypass, and from the end of the Toome Bypass as far as Castledawson. In keeping with recent schemes, the two new stretches of dual-carriageway will be of a high quality with flyover junctions and no breaks in the central reservation. Traffic levels on the route vary from 12,000 vehicles per day at Castledawson to 17,500 per day at the M22 end.

The existing Toome Bypass was to have been upgraded as part of the scheme with both roundabouts removed, and the Hillhead Road T-junction west of Toome would have been closed. As of late 2010 this decision has been reversed, so both roundabouts will remain (Roguery Road will be enlarged) although the Hillhead Road T-junction will still be closed. This is unfortunate and short-sighted as it means what is otherwise a continuous free-flowing road with grade separated junctions from Belfast to Castledawson will have two roundabouts in the middle.

Route Map

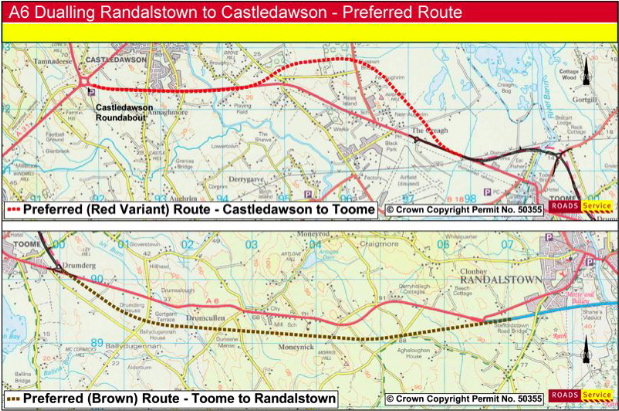

The map below was released to the press by the Roads Service in September 2005. It shows the western part of the scheme at the top, and the eastern portion at the bottom. The recently completed Toome Bypass has been added in black. Individual junctions are not shown.



The Bellshill Road / Annaghmore Road Controversy

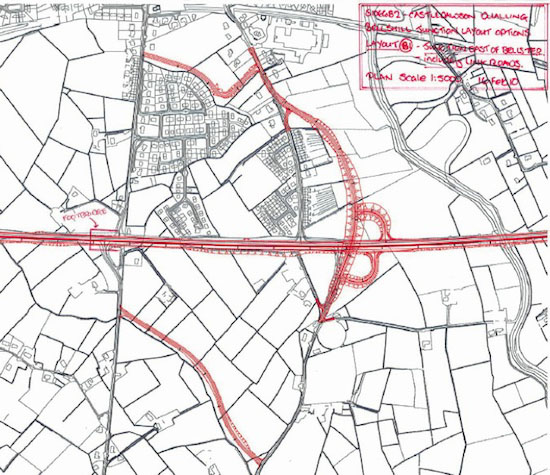

The design of the scheme has been generally accepted with the exception of the connection between Bellshill Road and Annaghmore Road in Castledawson, which has (as of Jan 2013) twice been rejected at a Public Inquiry and is now being reconsidered a third time. The controversy has related to (a) the way in which locals will access the upgraded A6 from these two roads and (b) the impact of new connector roads on local residential and agricultural property. The maps below show the evolution of the proposals.

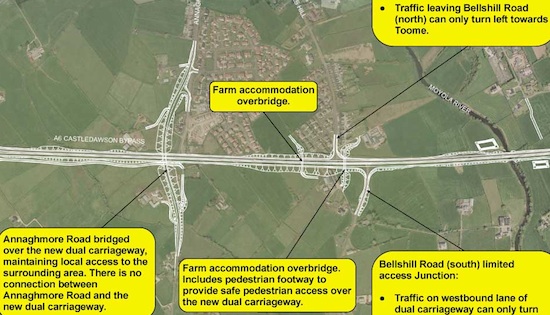

ABOVE: Original design proposed but rejected at 2007 Public Inquiry.

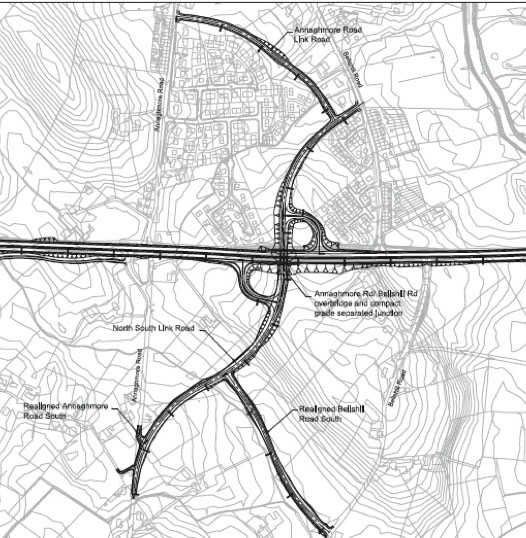

ABOVE: Revised design submitted at 2012 Public Inquiry but again rejected.
(You can see this map in more detail at the end of this document.)

ABOVE: Inspector's recommended design as of 2013.
(You can see this map in more detail at the end of this document.)

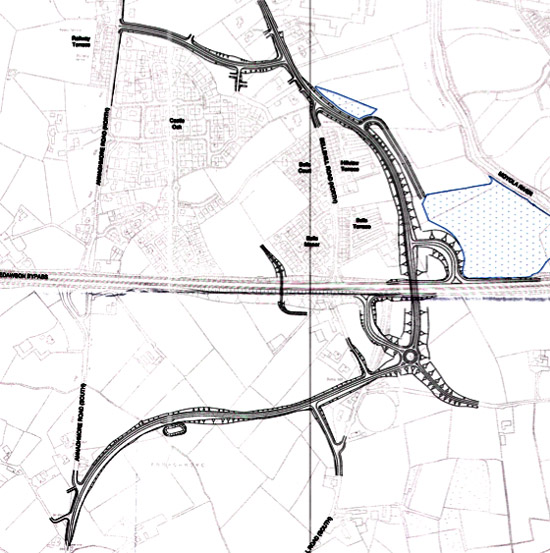

ABOVE: Roads Service's revised design as of June 2013, which is their refinement of the inspector's suggested design (compare to previous map). You can see this map in more detail here.

Background to the Scheme

The original grand motorway plan of 1964 would have seen the M22 extend from Antrim past Toome and terminating at Castledawson. (Londonderry traffic would have followed the M2 as far as Ballymoney and then taken the proposed M23 to the city). When this scheme got abandoned in 1975, the M22 had not even made it as far as Toome and it left the single-carriageway A6 as the most direct route to Londonderry. It has been in this state for the intervening 30 years with the narrow and twisty section from the M22 to Toome one of the poorest standard trunk roads in Northern Ireland.

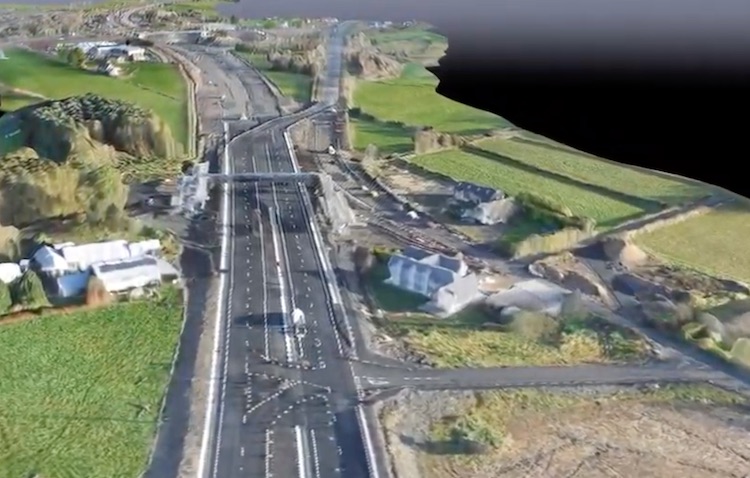

Strip Junction Map

See also route map above. This is a strip map of the design that is being proposed as of 2016. The existing Toome Bypass is highlighted in yellow, which will remain in situ.


EAST

Begins as M22 motorway

2+2 lanes

RANDALSTOWN WEST

or ARTRESNAHAN

A6 Moneynick Road
(to Randalstown)

B? Moneynick Road

(existing A6)



7.0 km / 4.4 miles - 2+2 lanes

DRUMDERG

B? Moneynick Road

(existing A6)

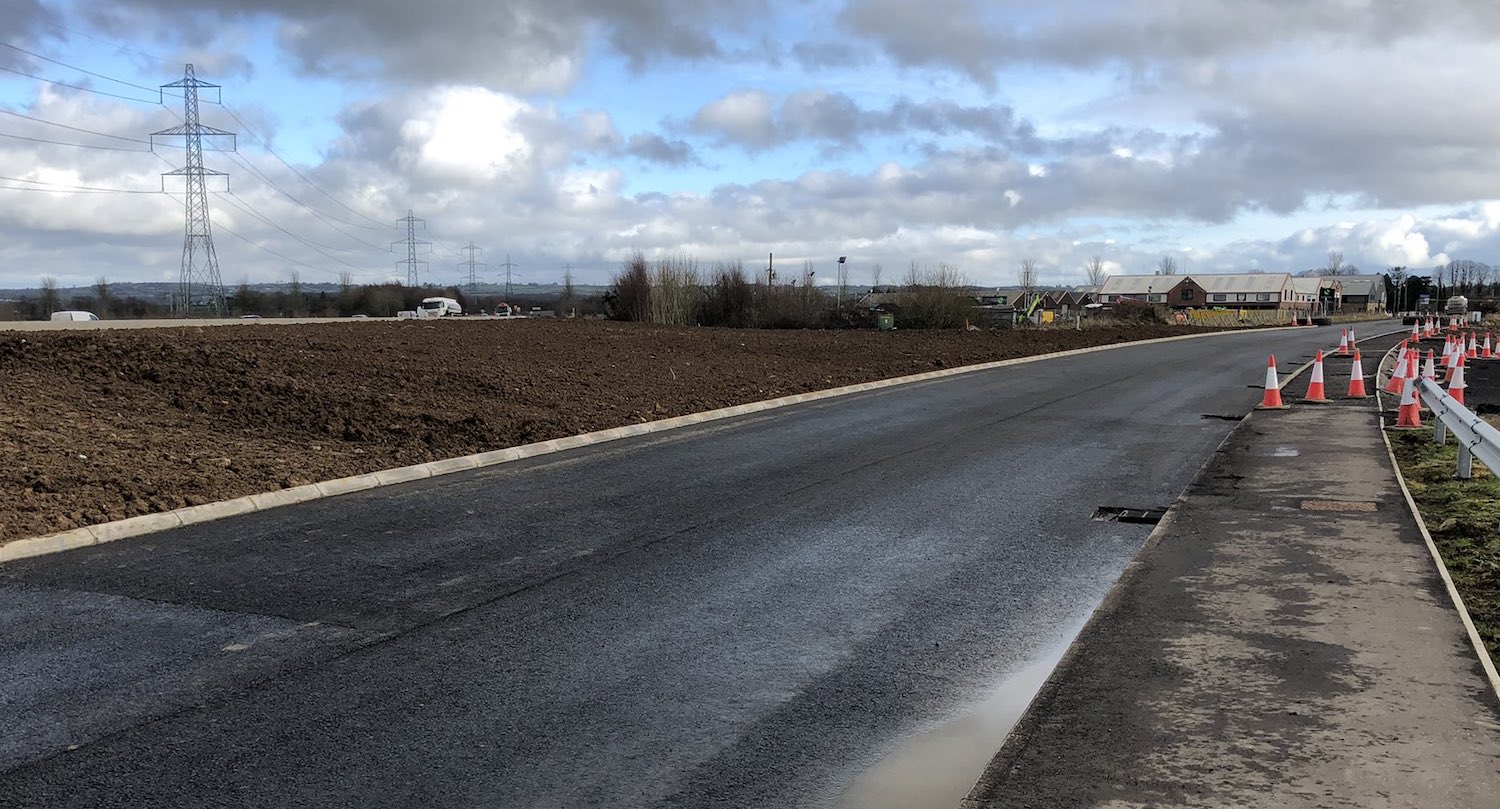

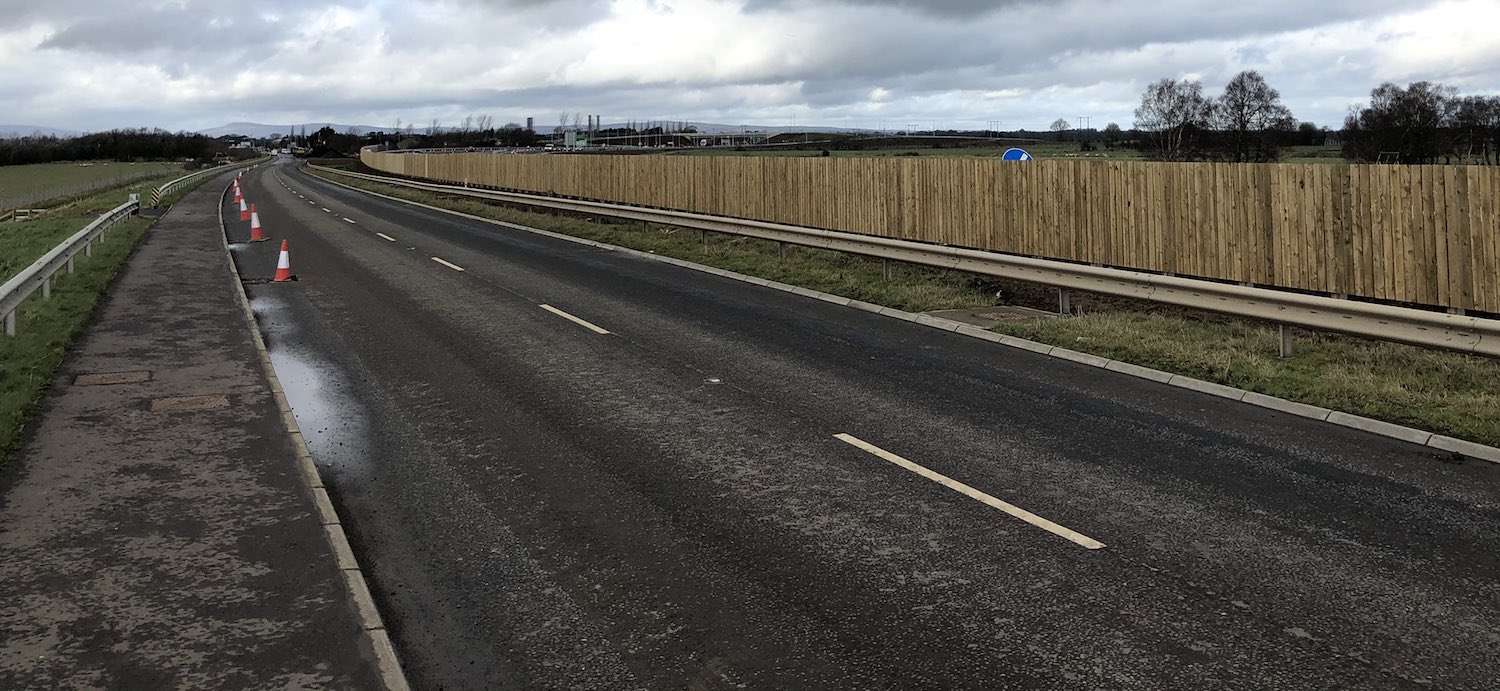

 B18 Moneynick
Road

 (into Toome)


1.2 km / 0.7 miles - 2+2 lanes

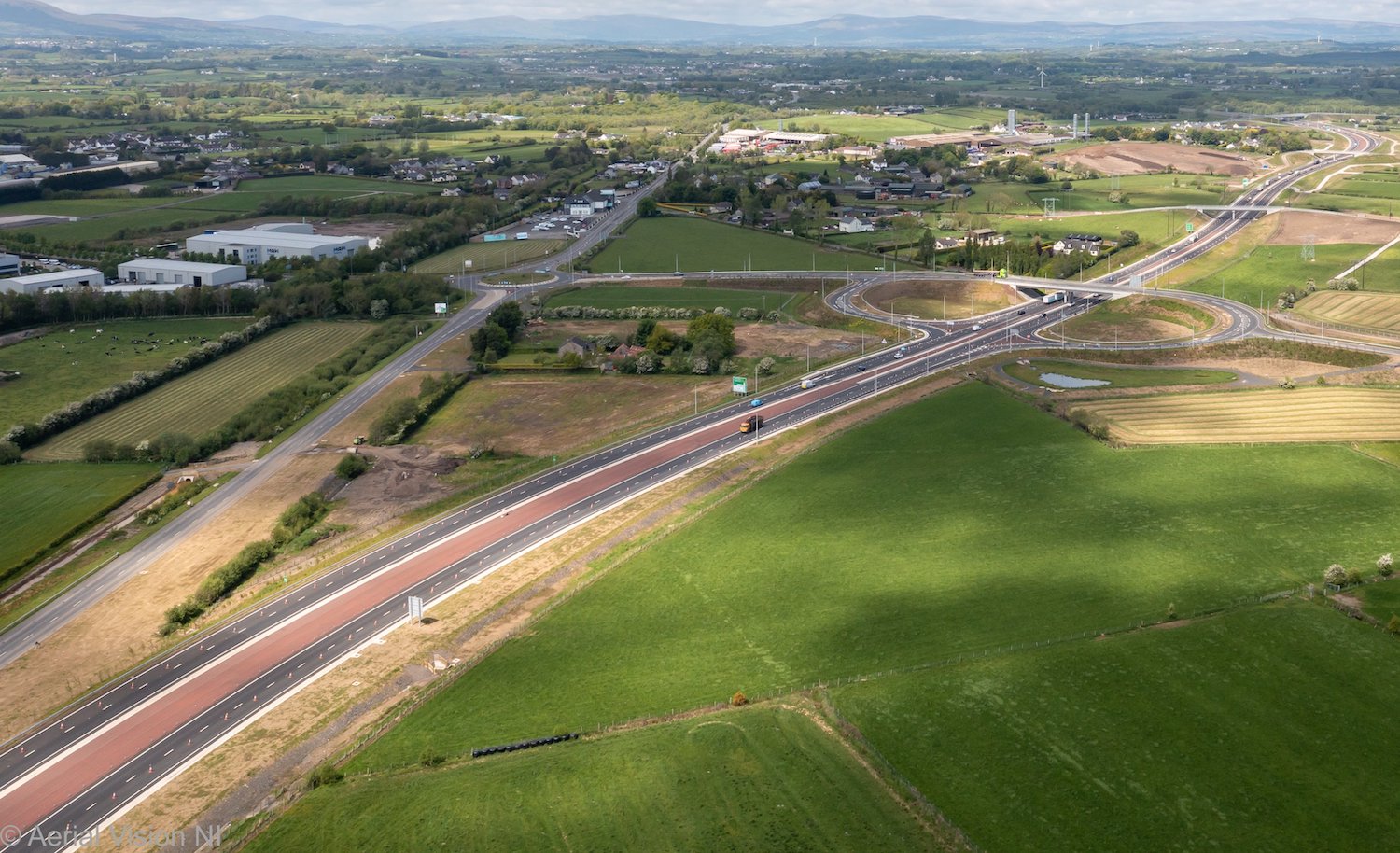

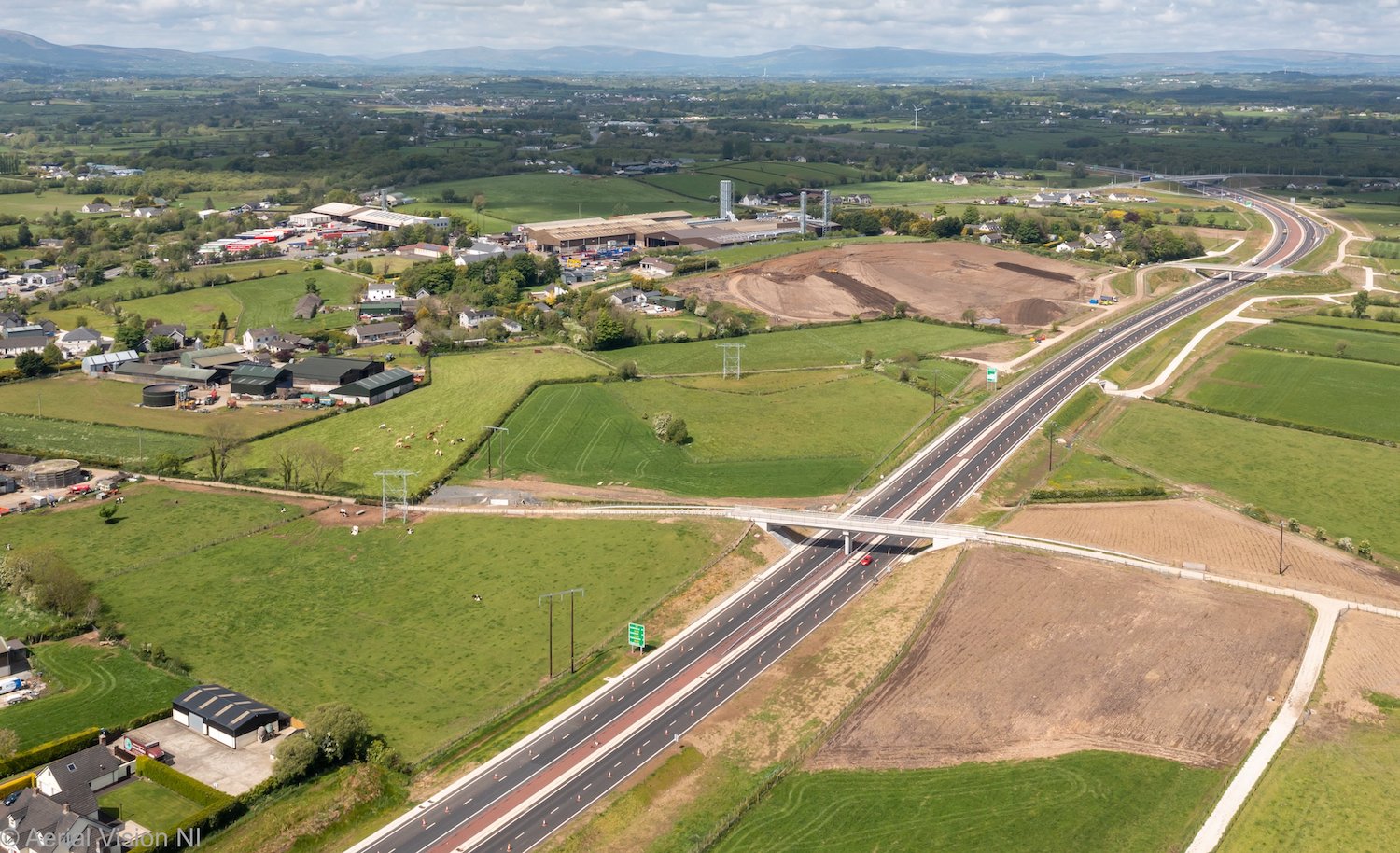

ROGUERY ROAD



 Roguery Road


 The Toome Bridge




Roguery Road
(into Toome)

River Bann


0.7 km / 0.4 miles - 2+2 lanes
OLD BANN ROAD

Local farm access

(eastbound only)

Old Bann Road

(eastbound only)



0.3 km / 0.2 miles - 2+2 lanes


Local farm access

(eastbound only)



1.4 km / 0.9 miles - 2+2 lanes

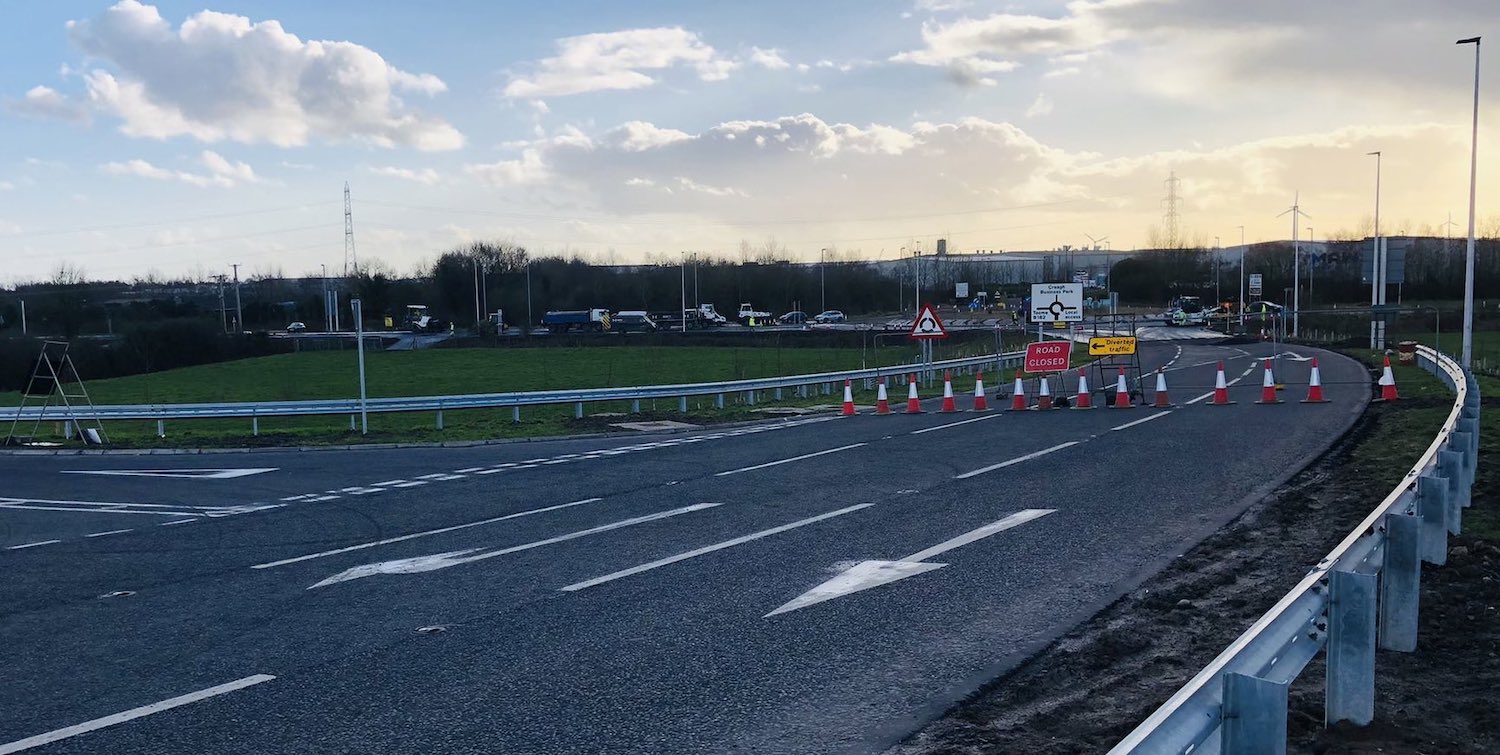

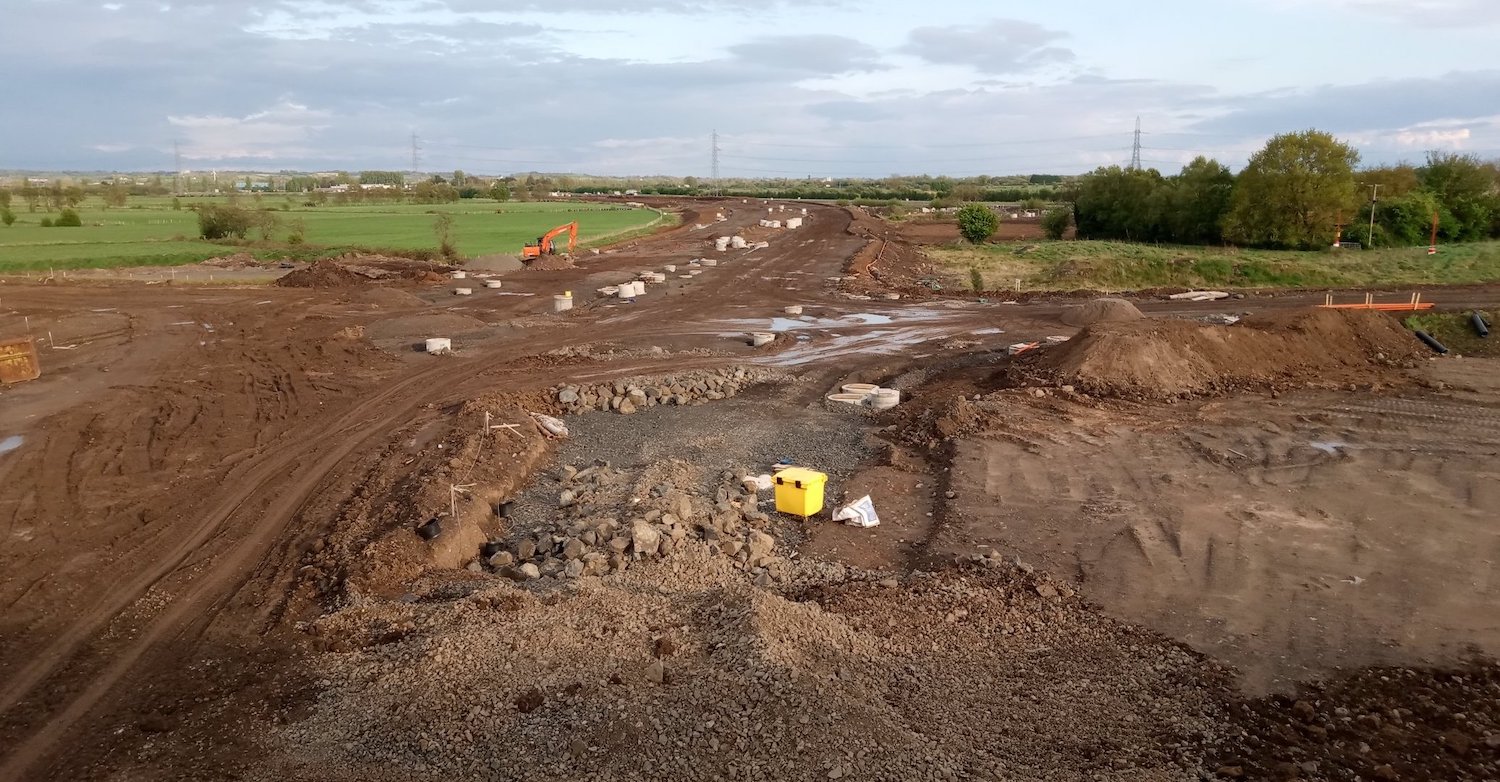

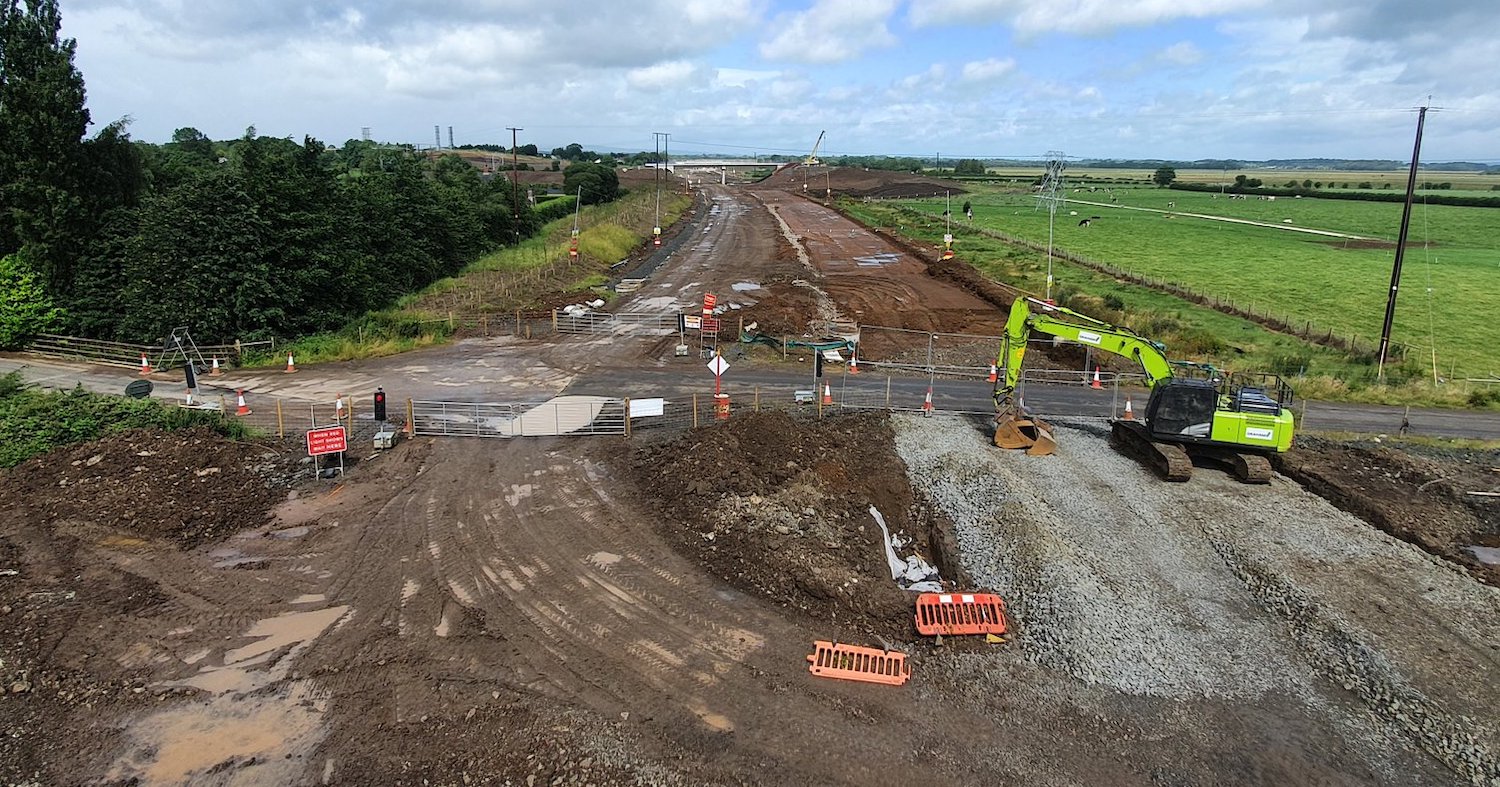

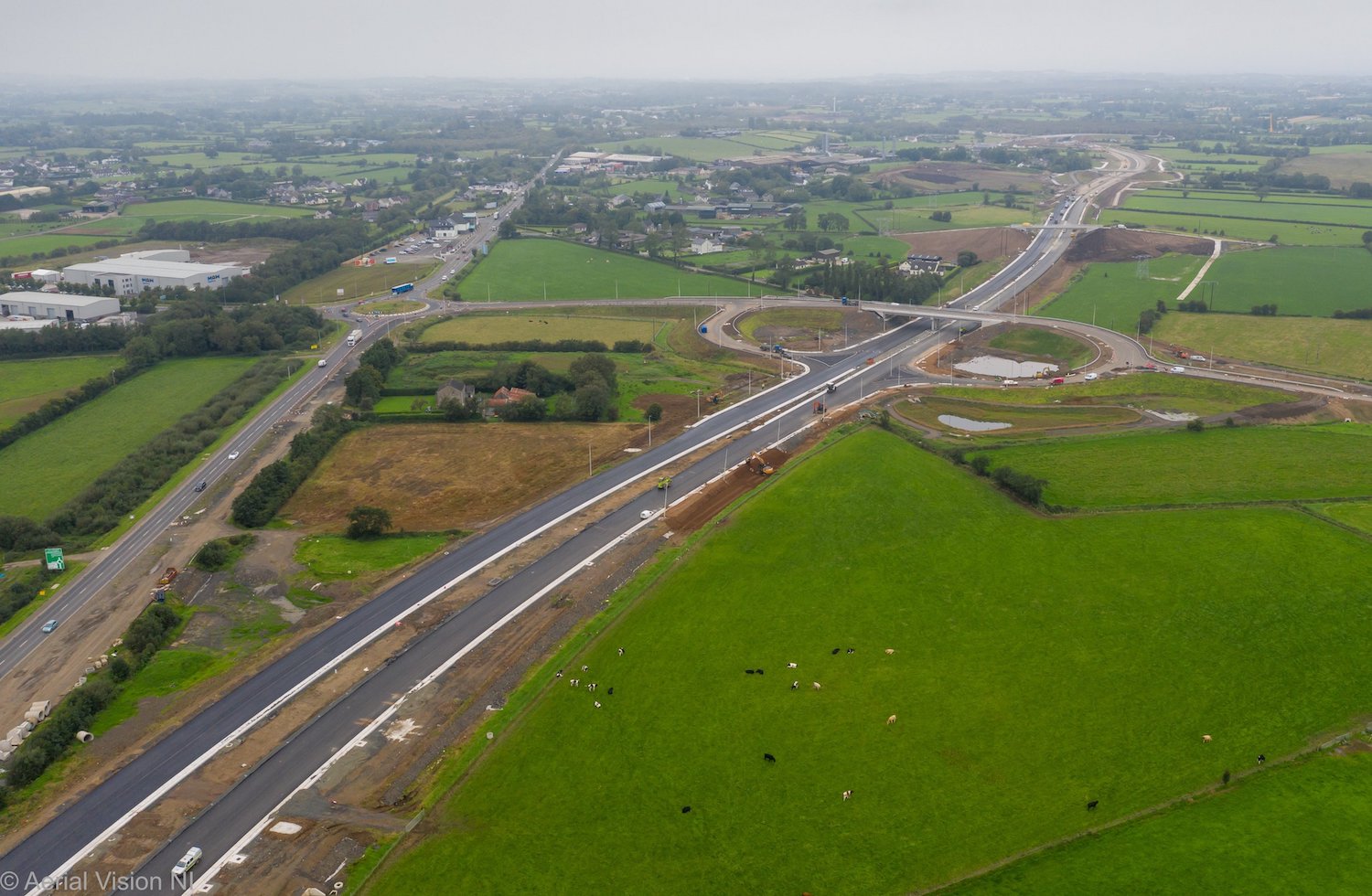

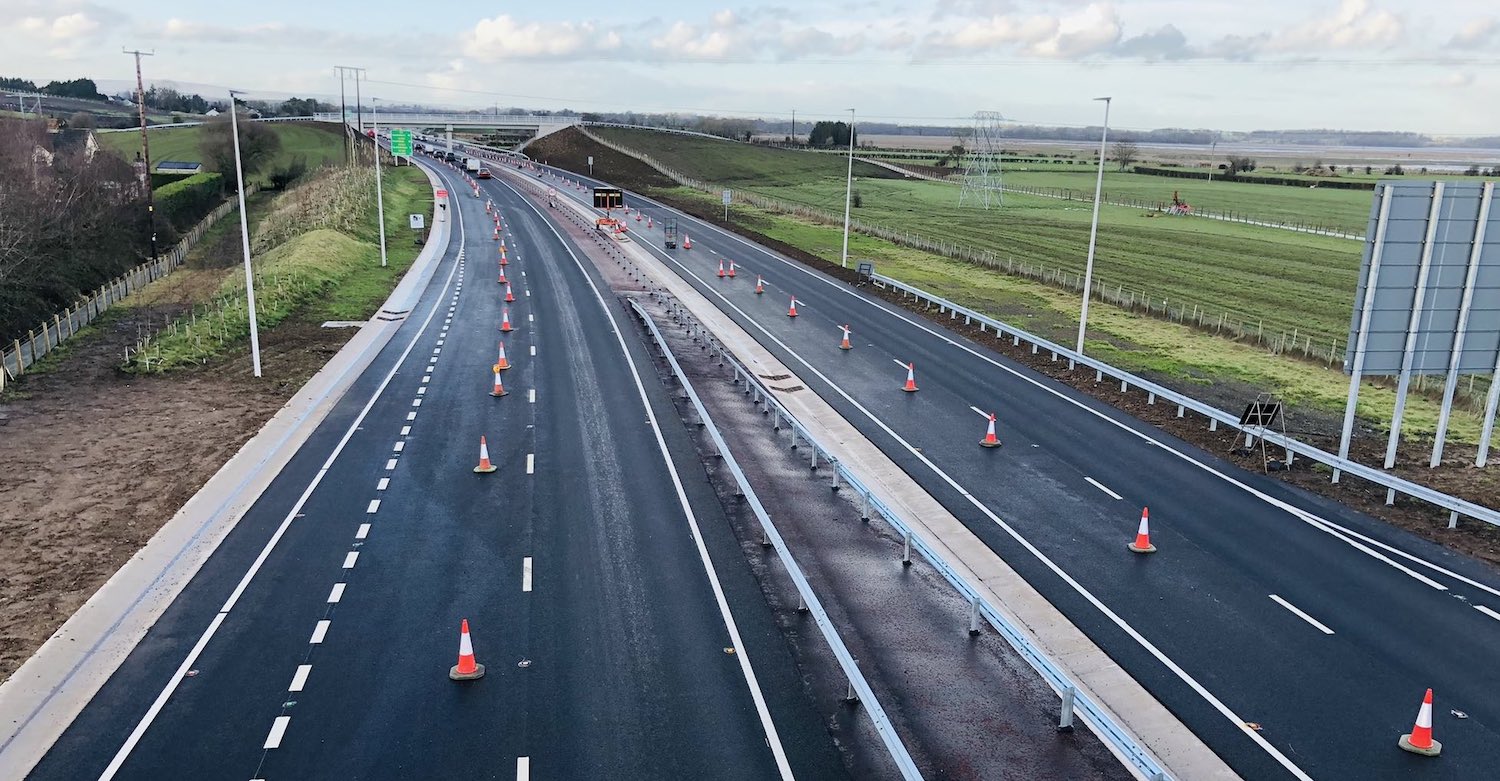

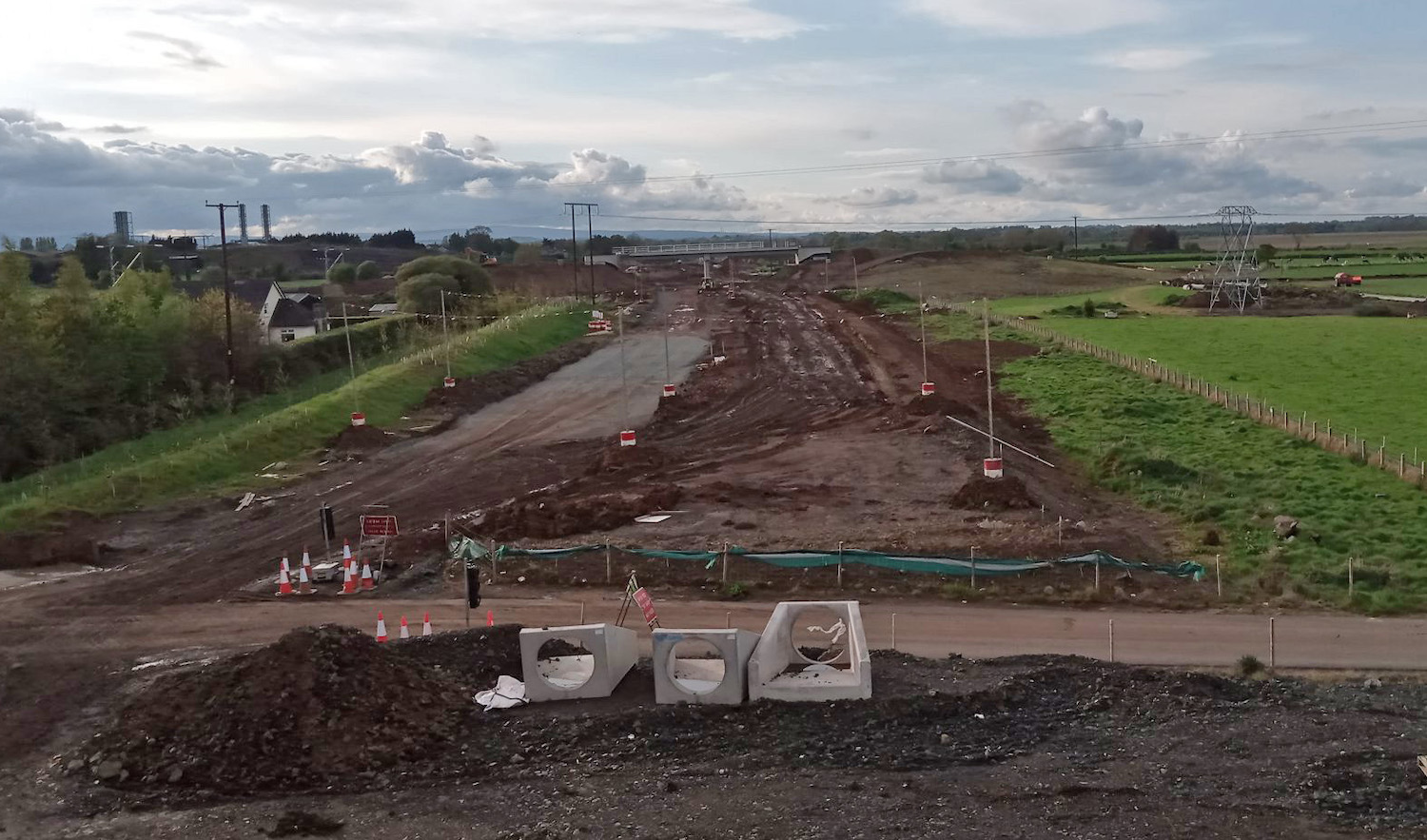

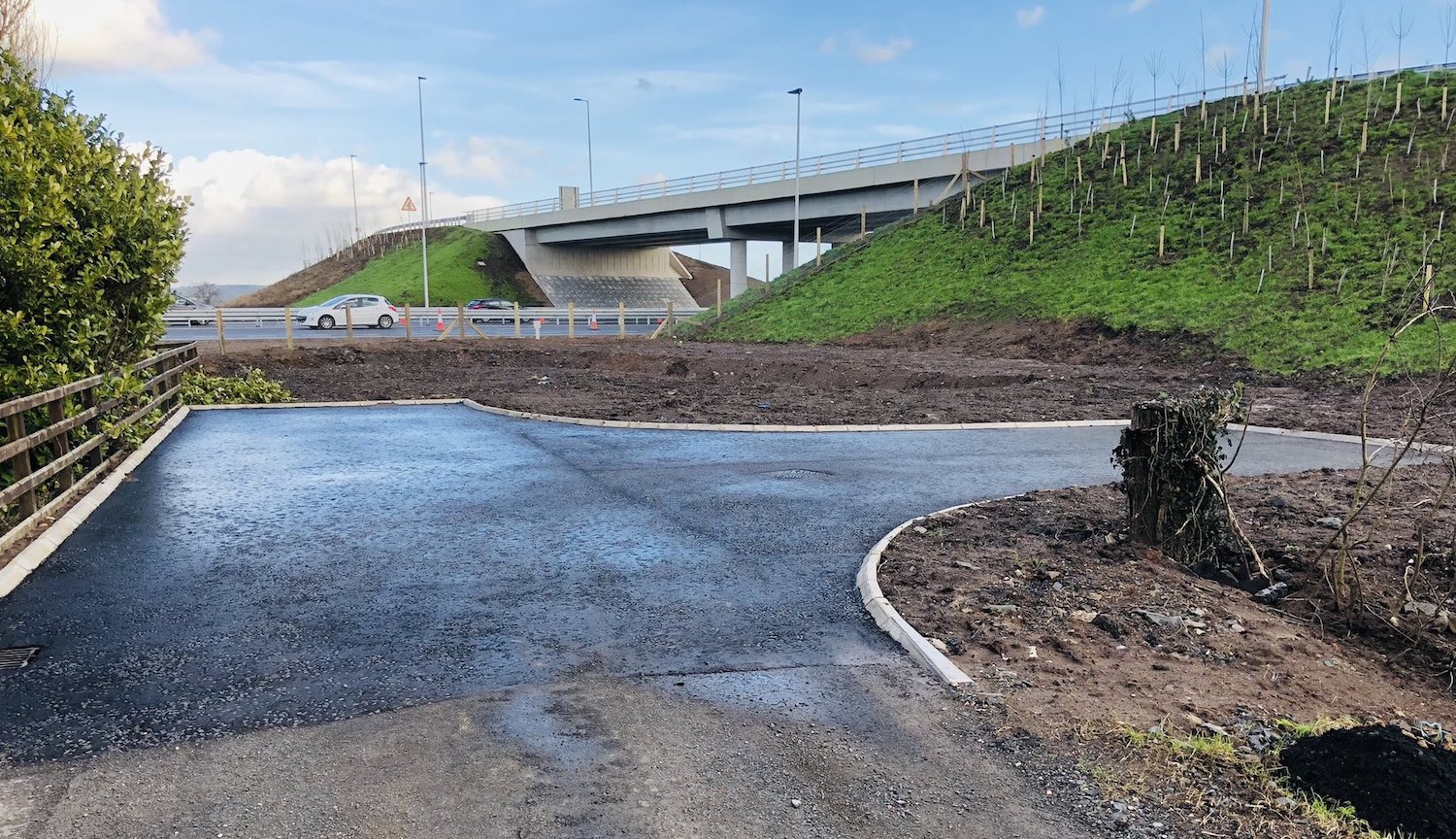

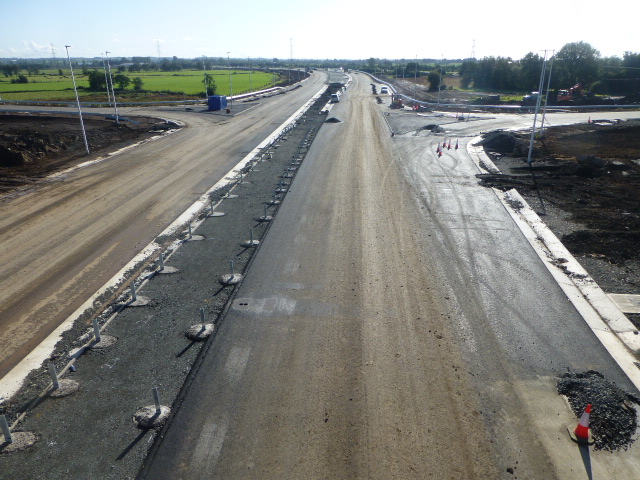

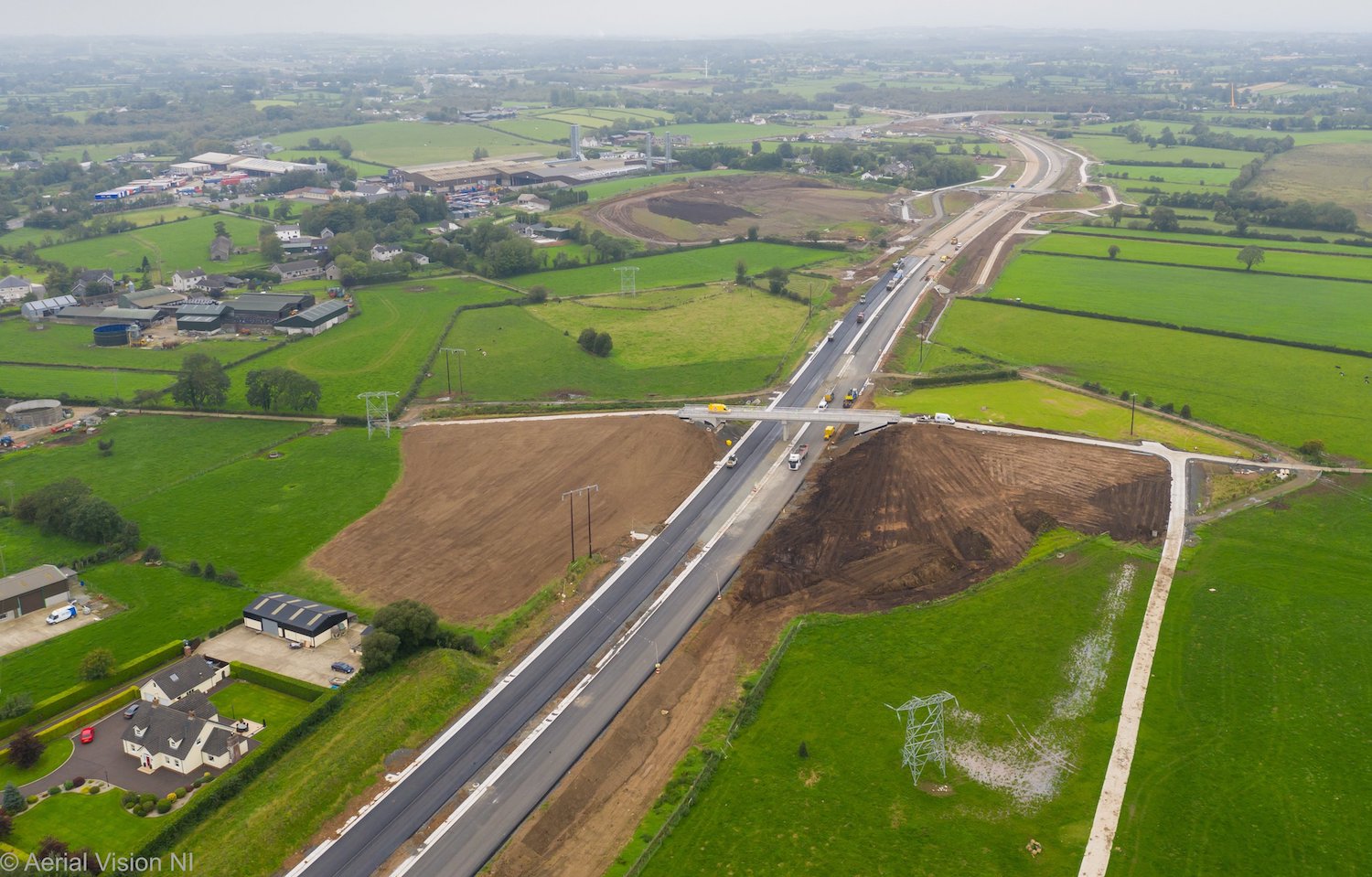

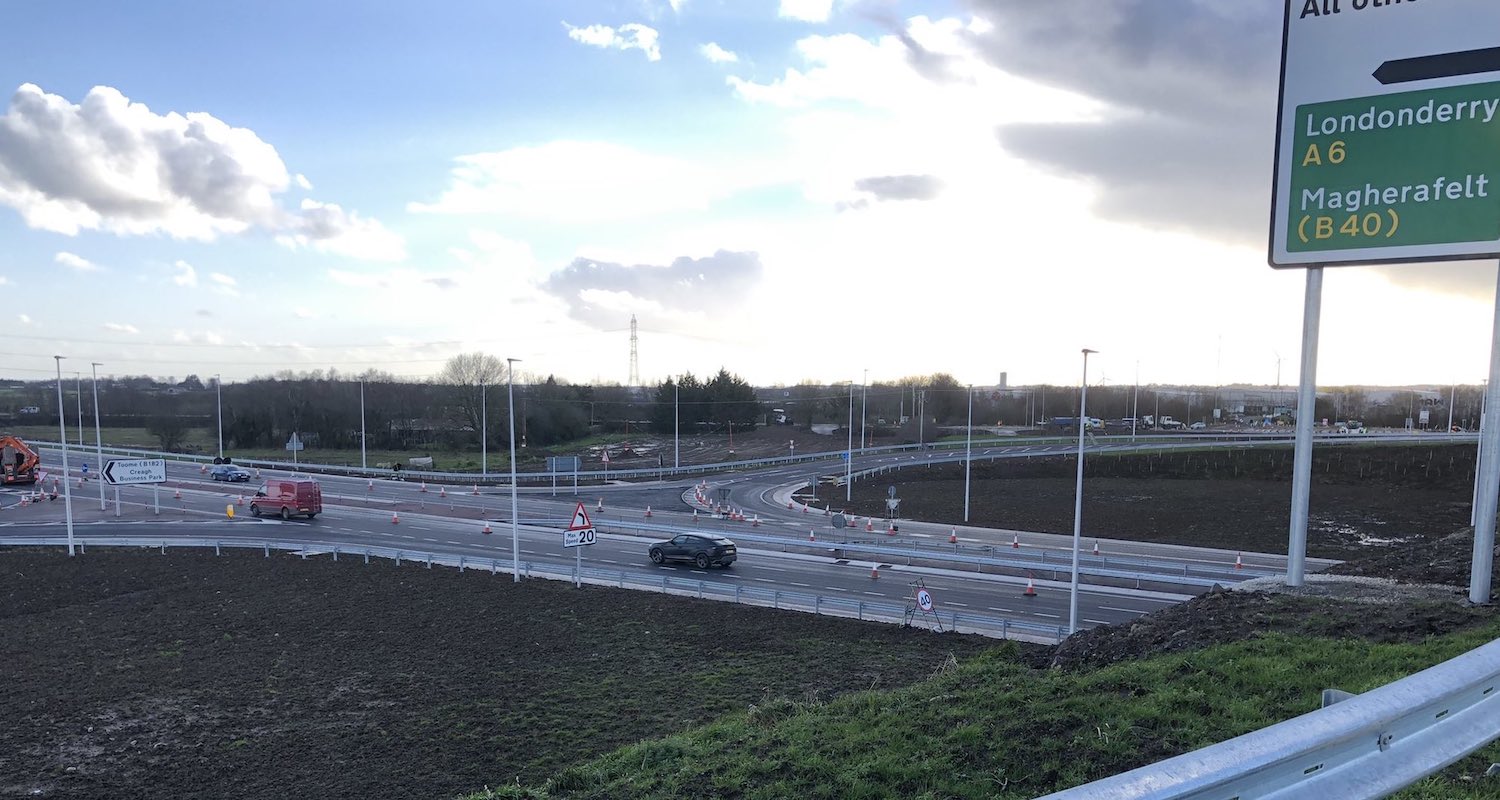

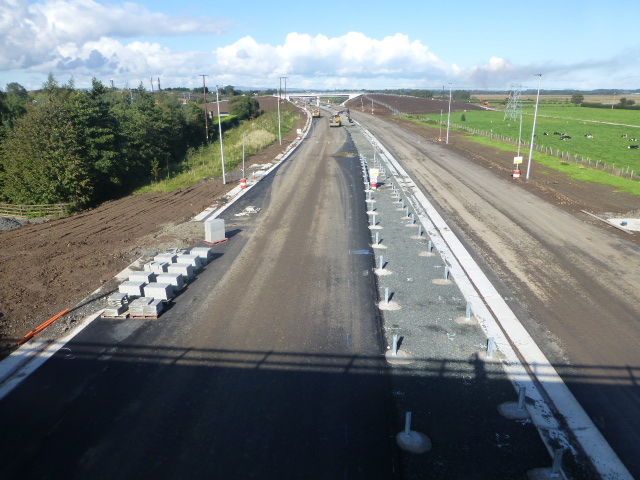

THE CREAGH
Boylie Road

 B? Hillhead Road

 Creagh Business Park

 B? Hillhead Road


1.6 km / 1.0 miles - 2+2 lanes

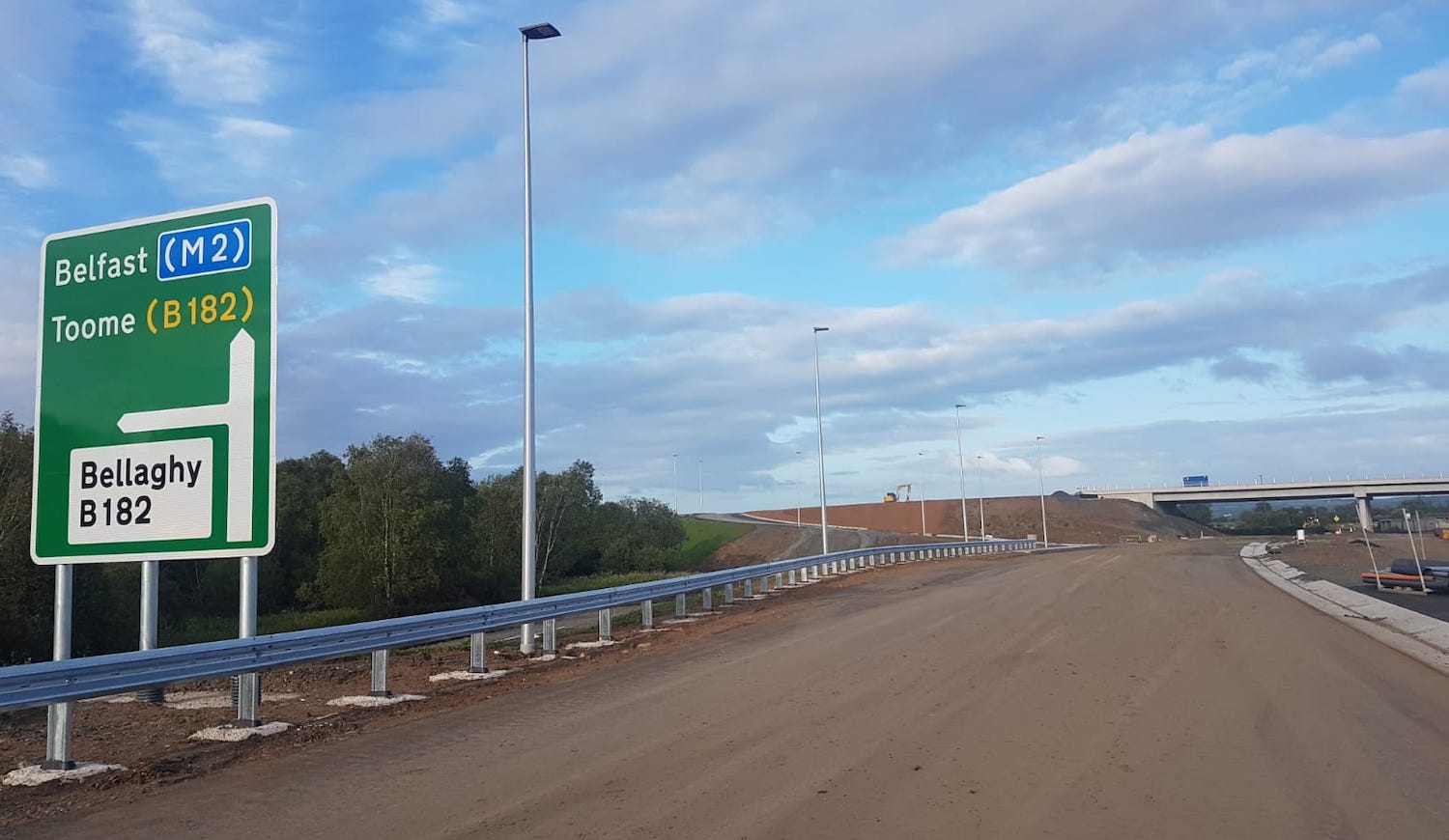

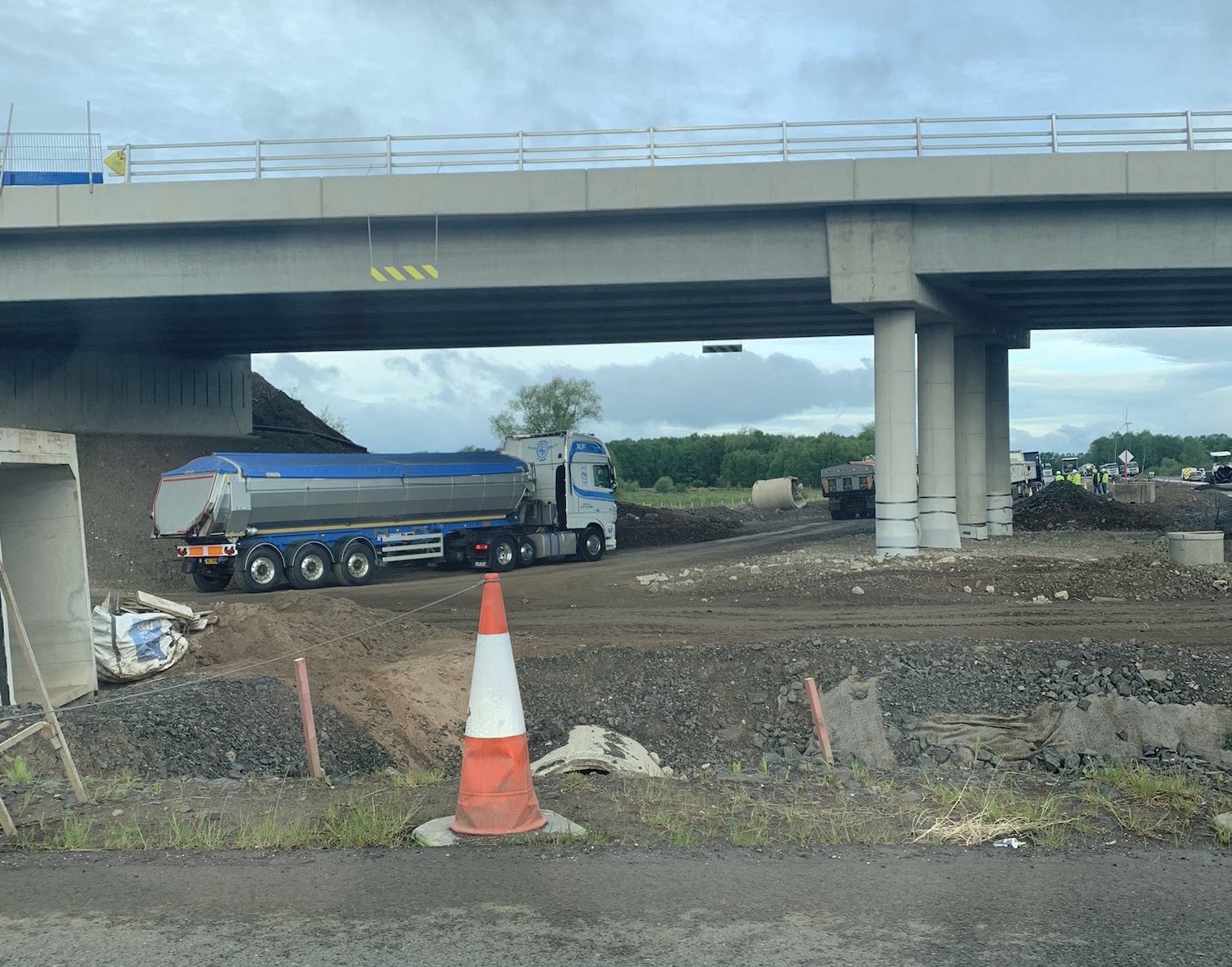

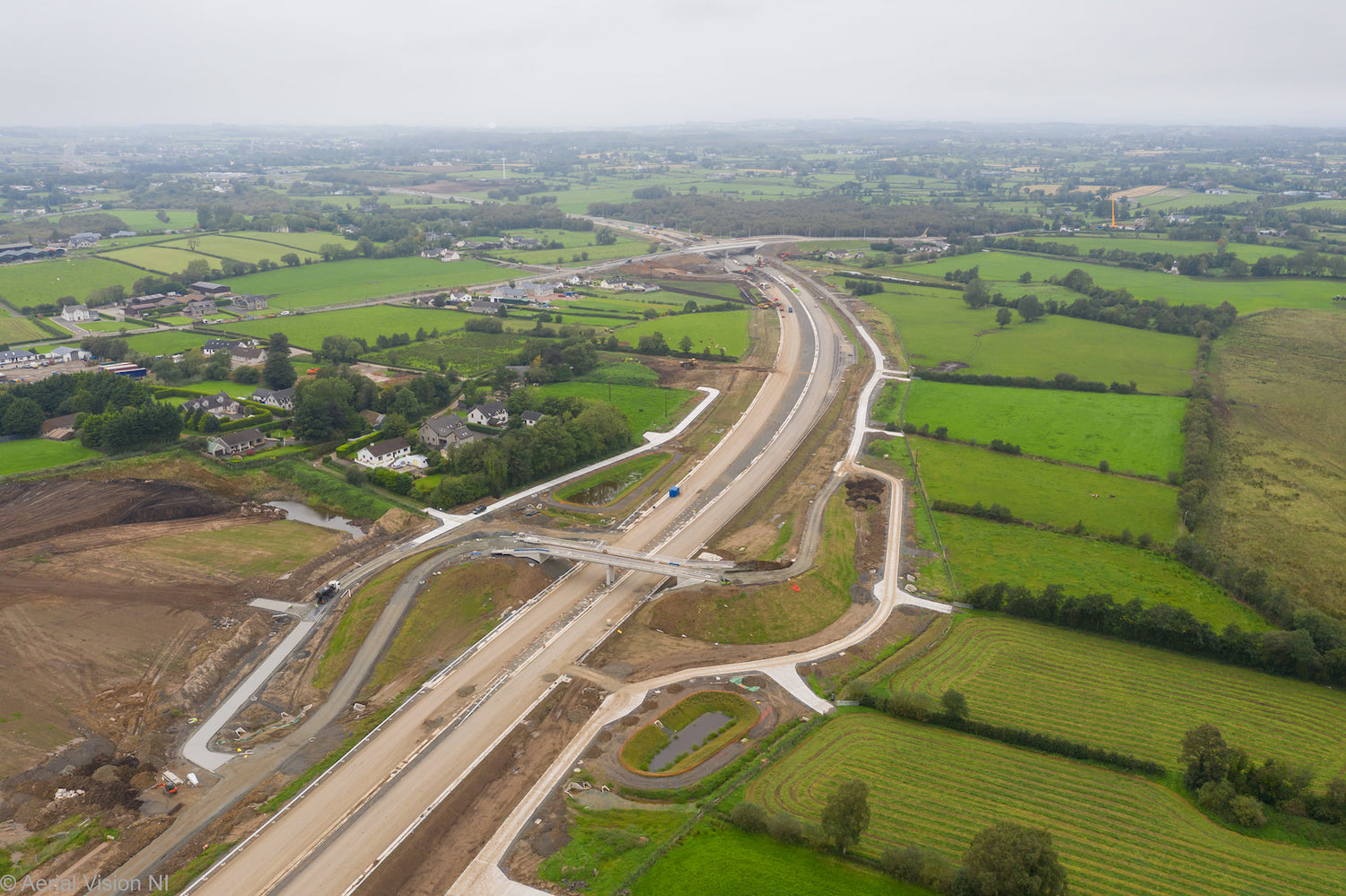

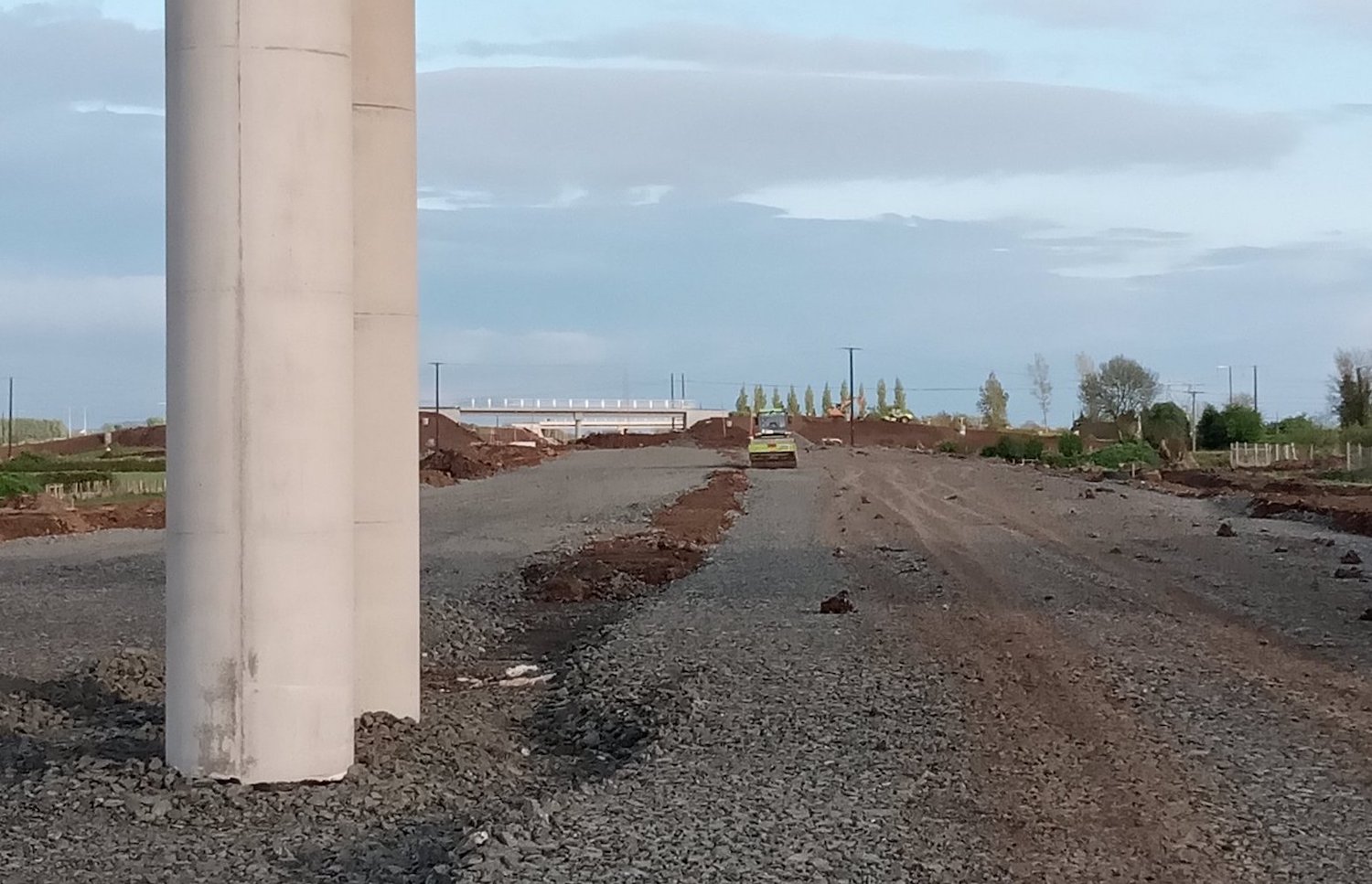

DEERPARK ROAD
Deerpark Road
 Deerpark Road

1.3 km / 0.8 miles - 2+2 lanes

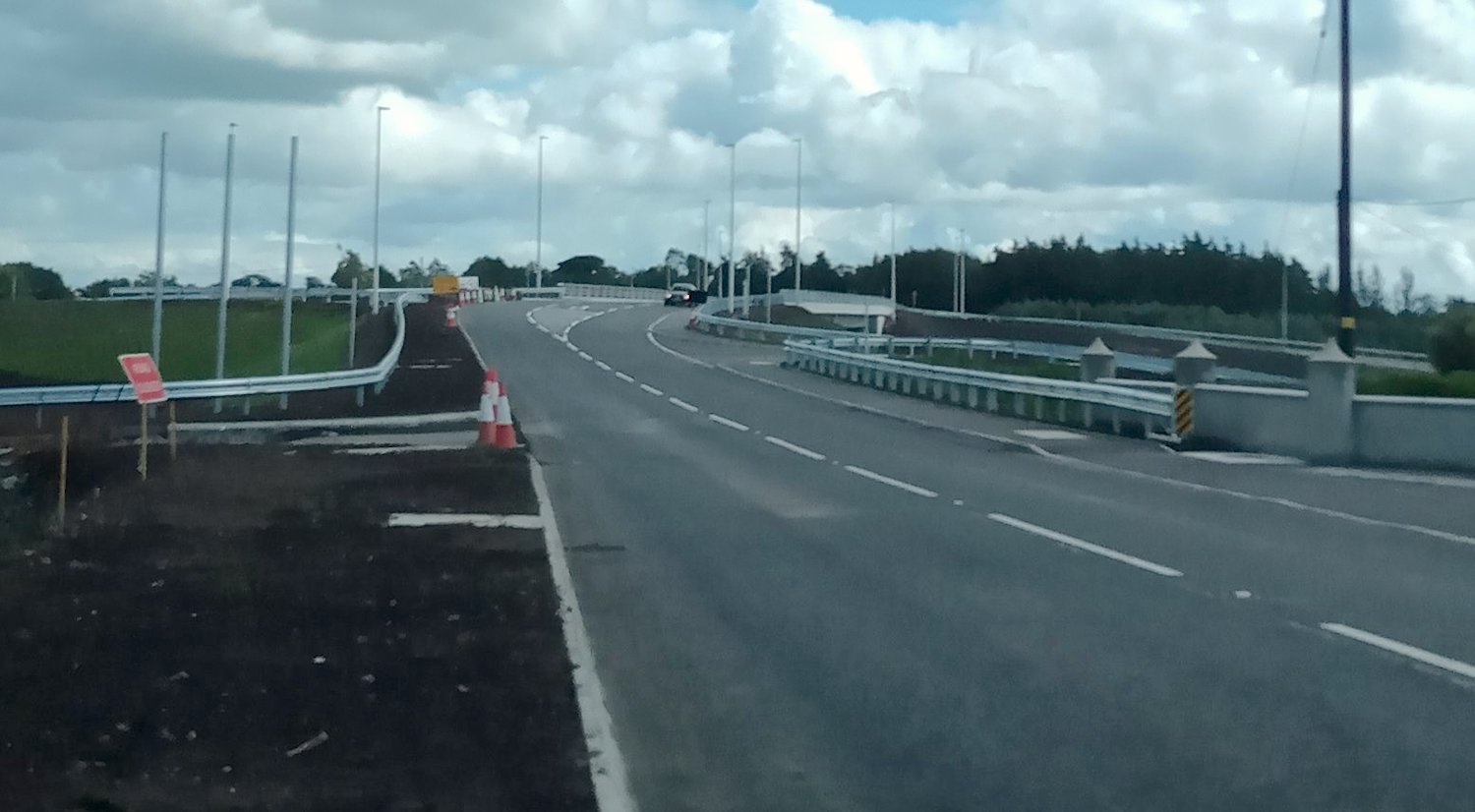

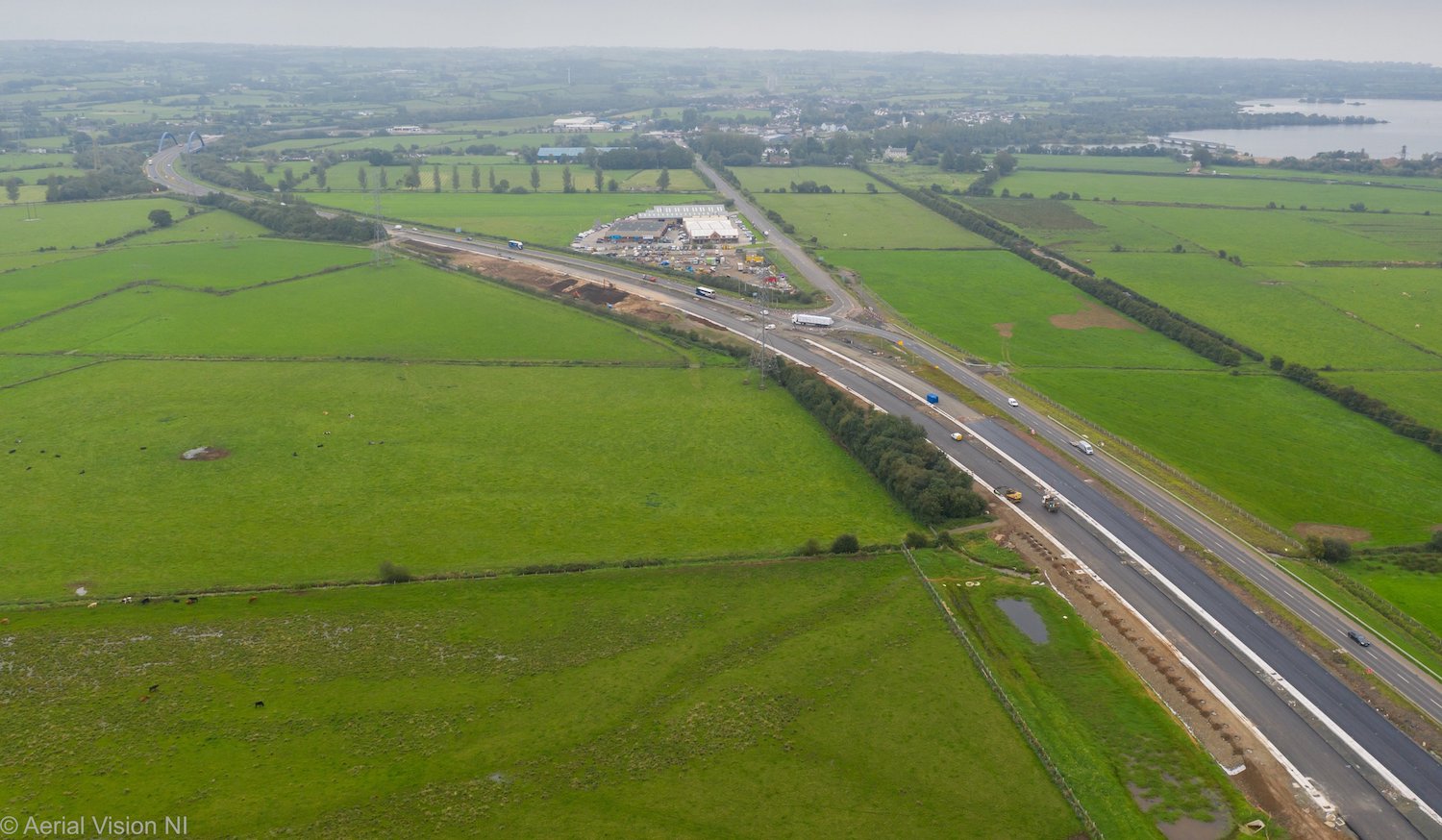

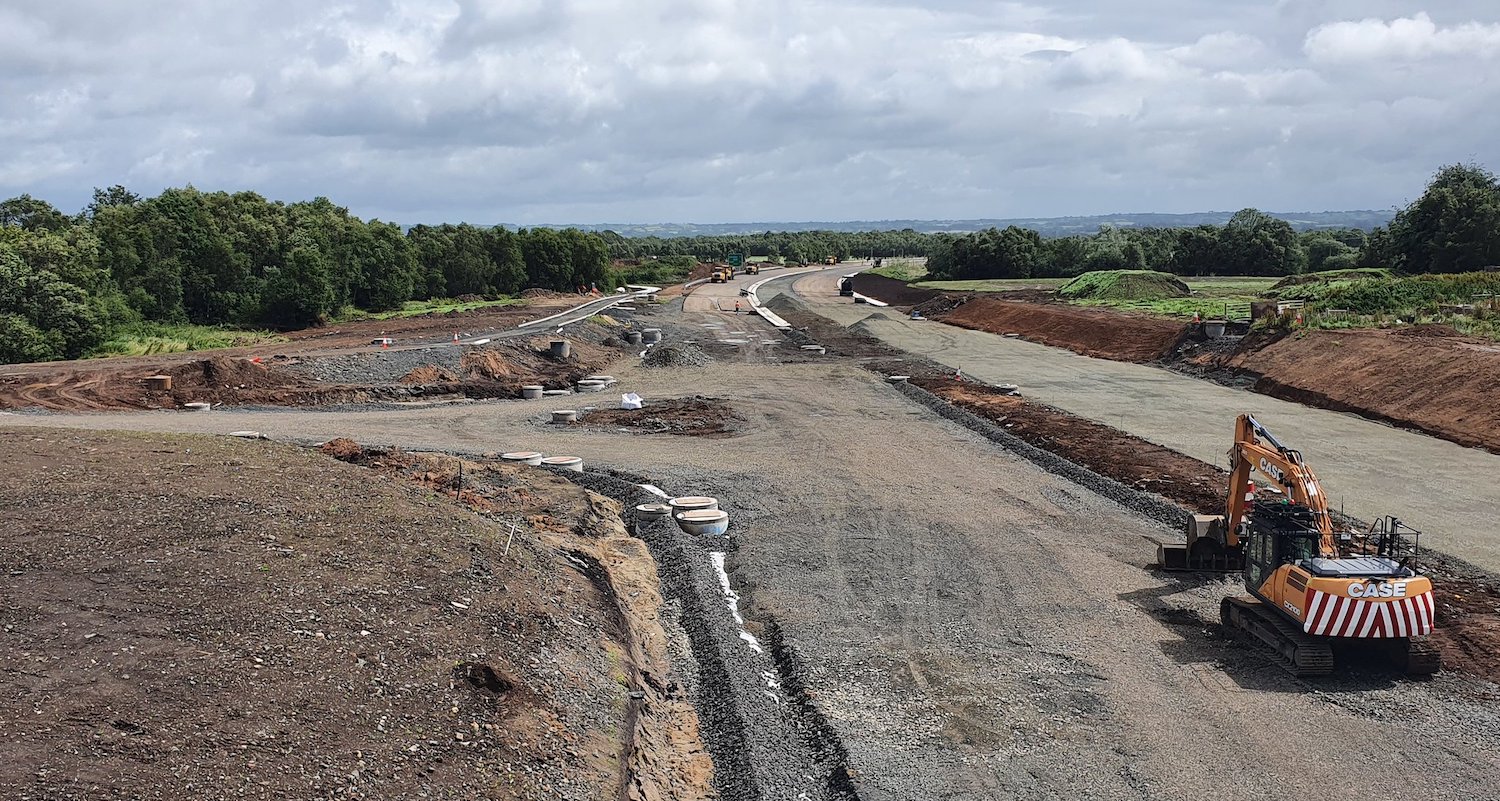

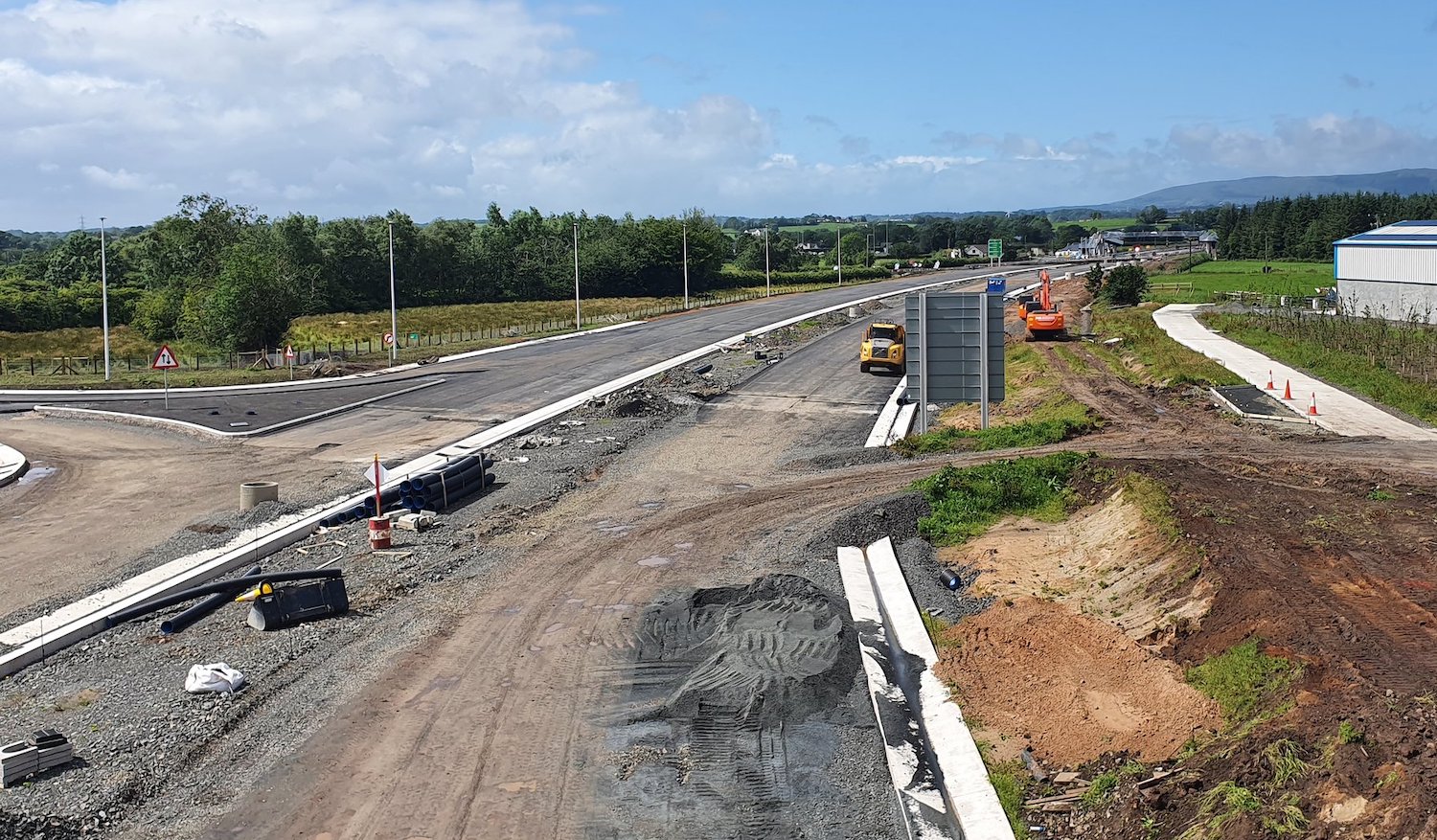

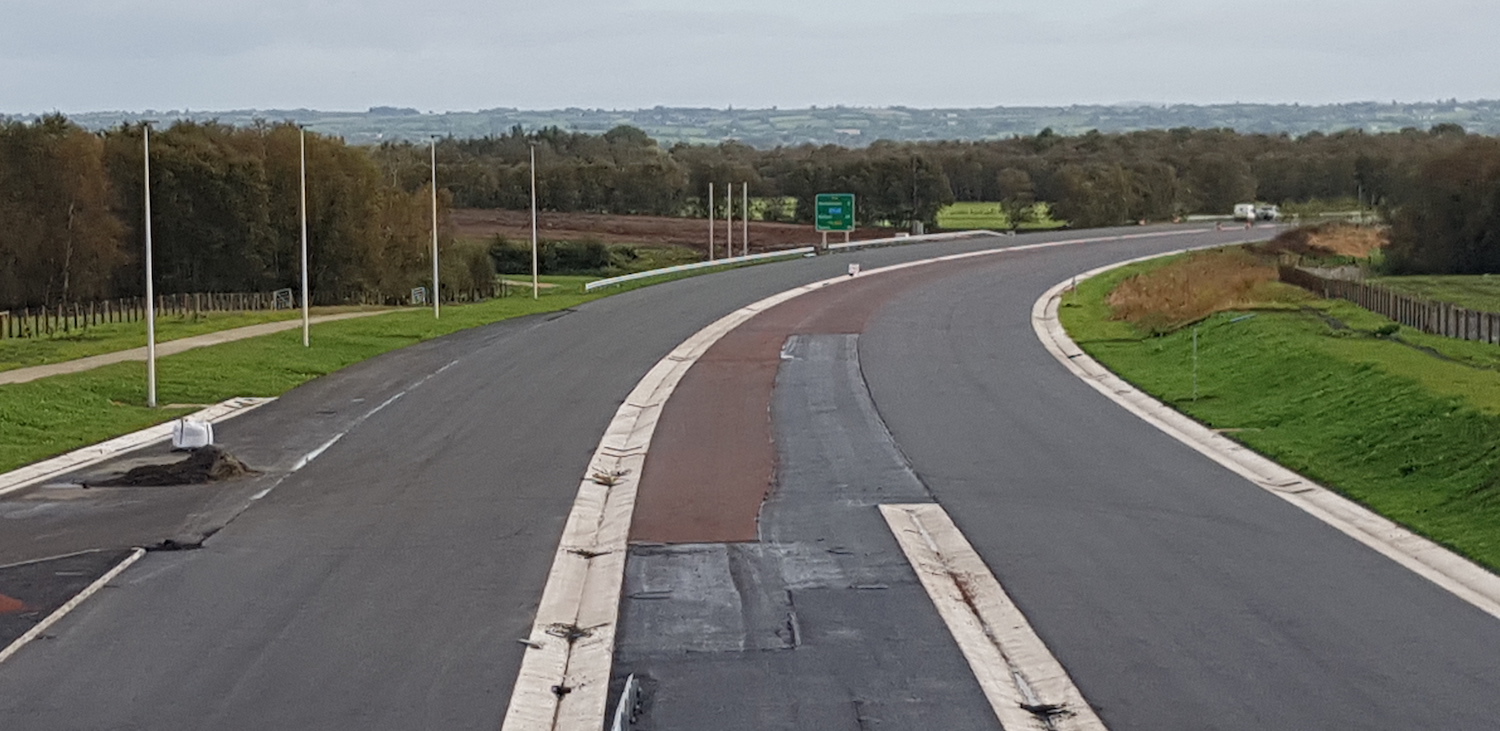

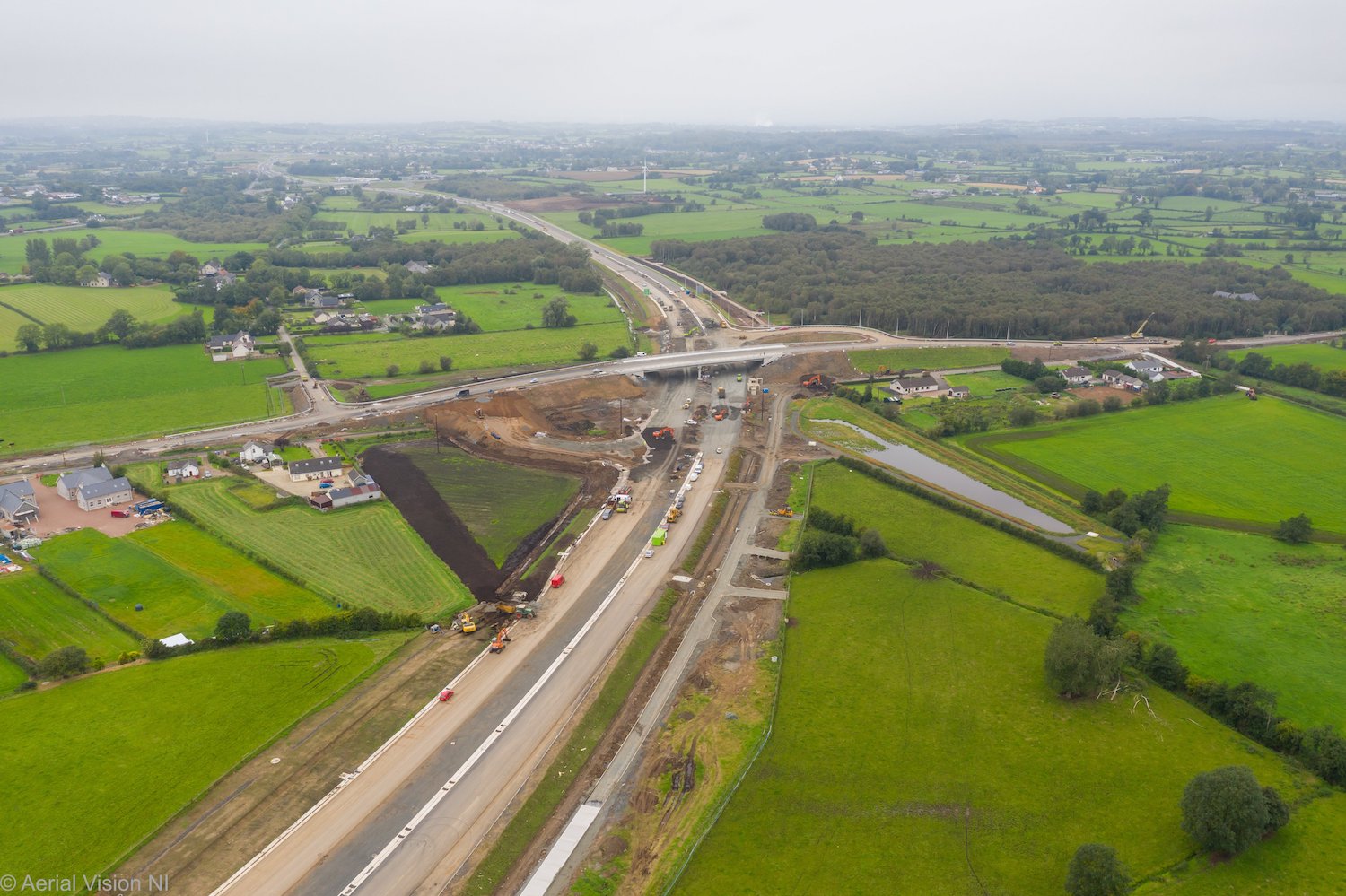

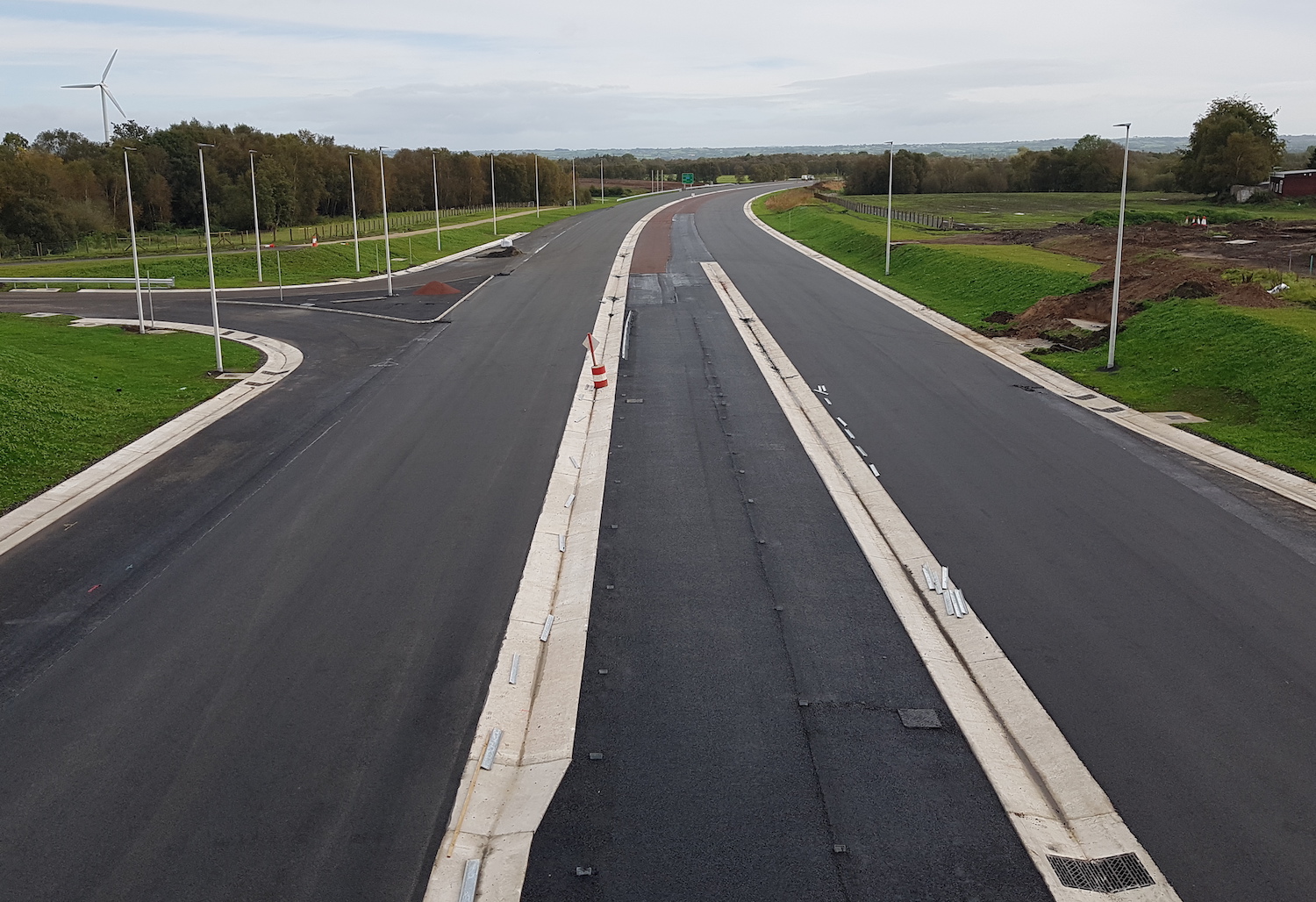

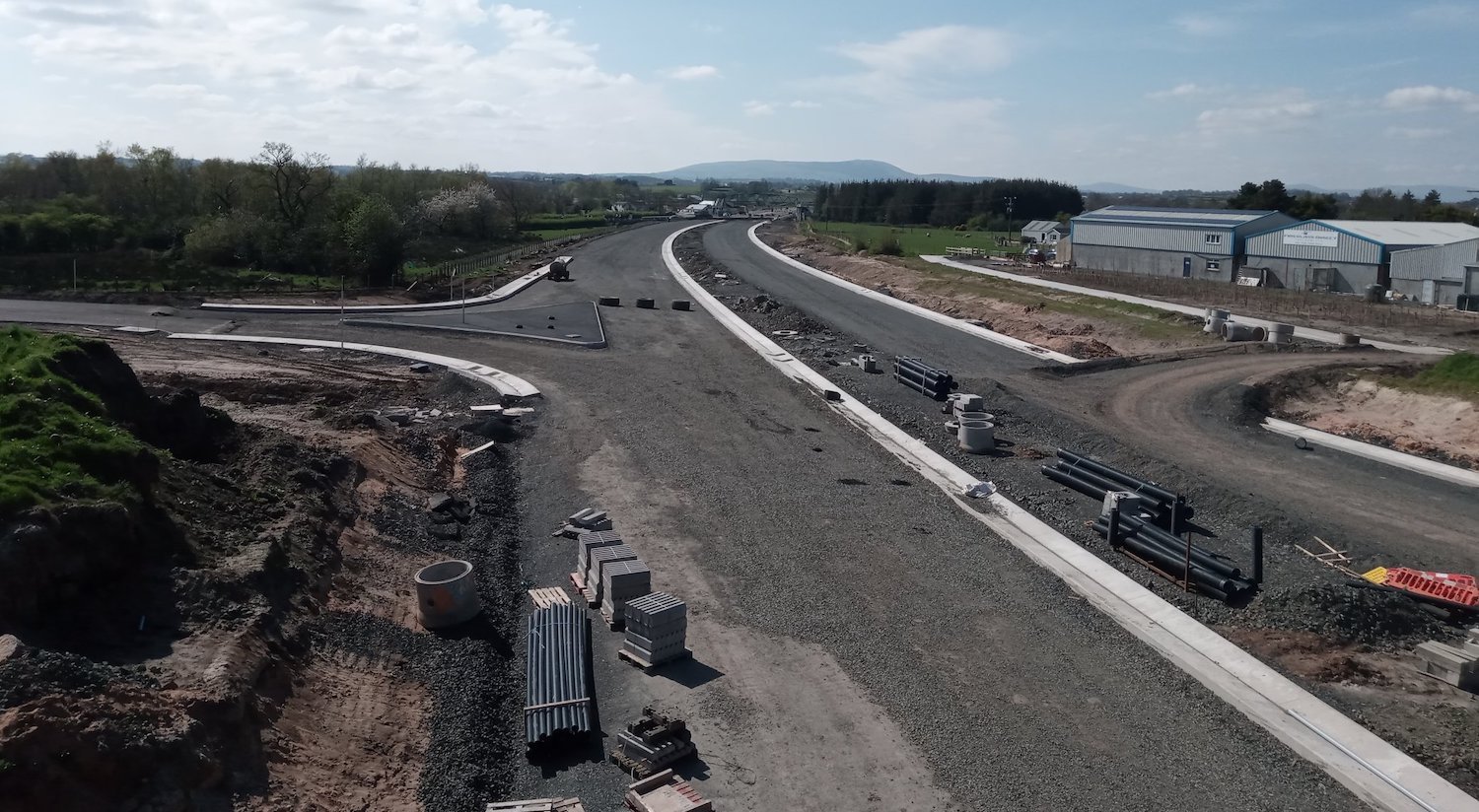

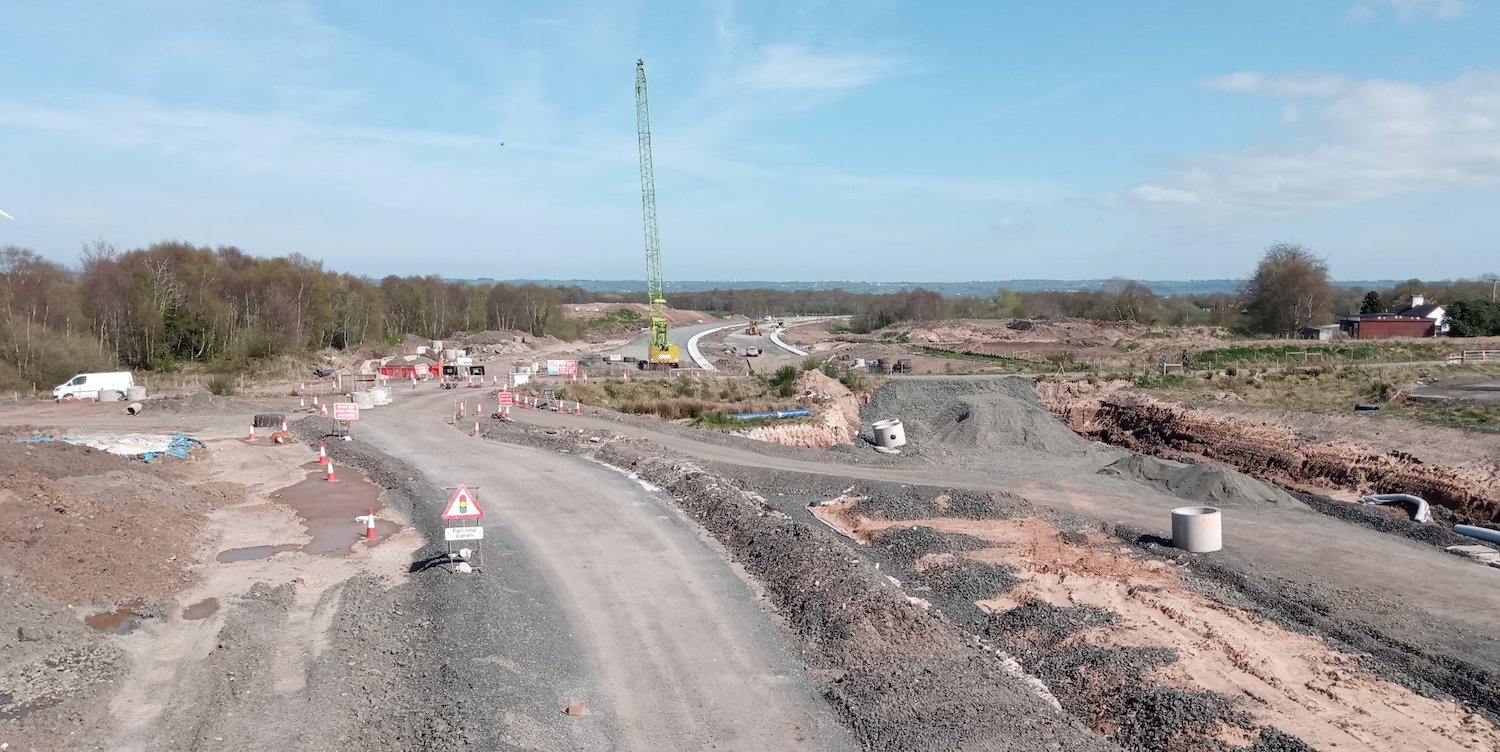

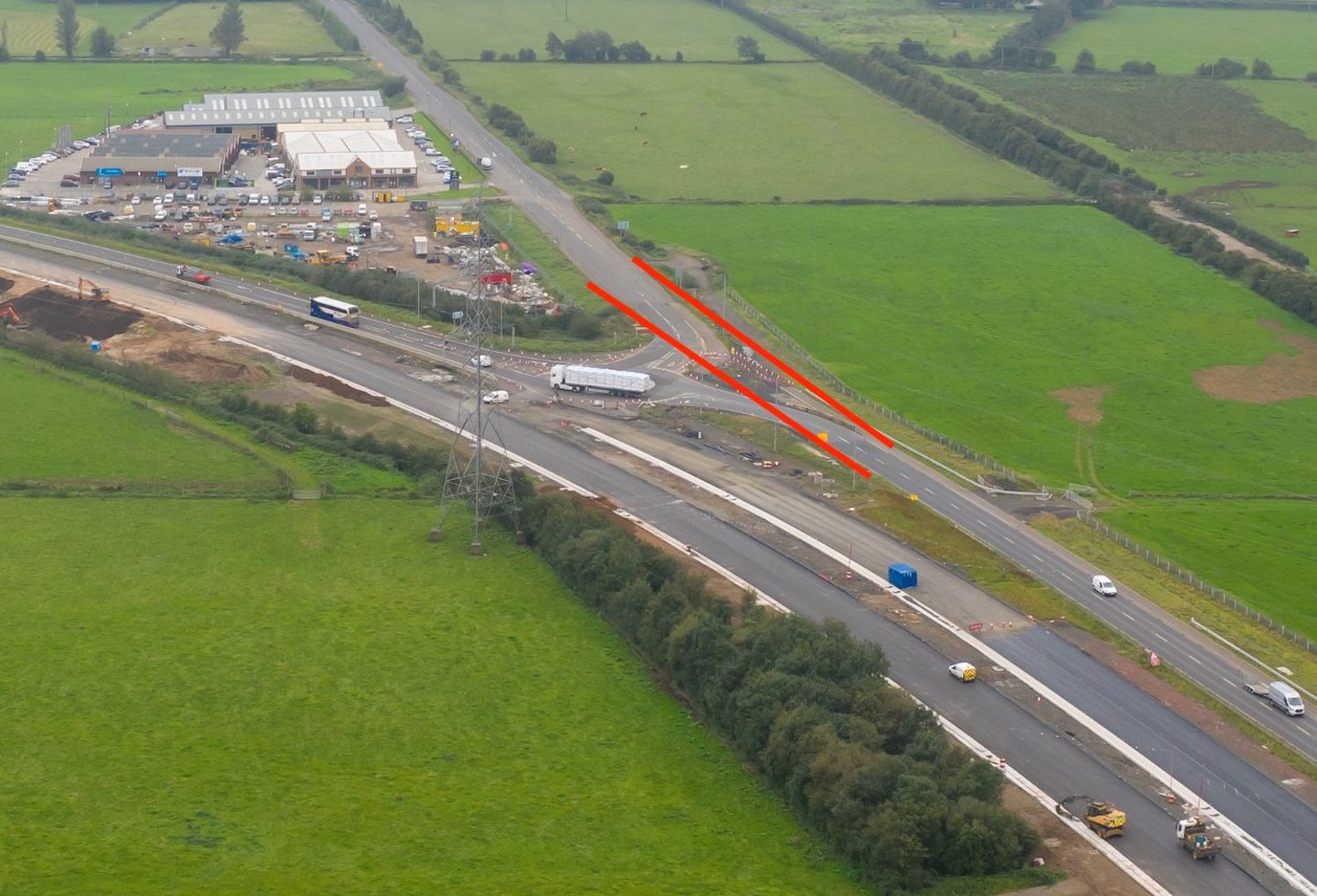

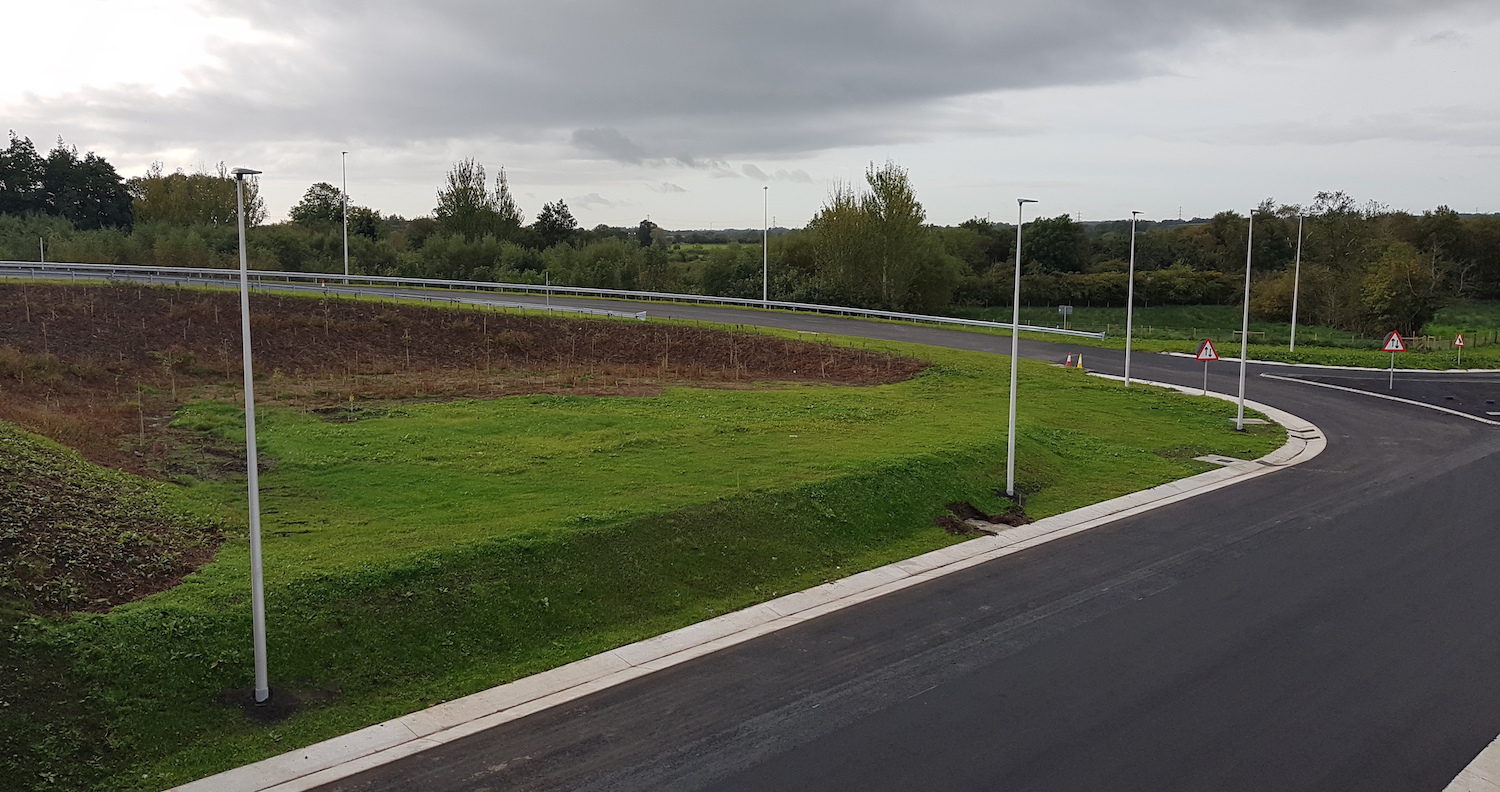

HILLHEAD ROAD

Hillhead Road

(into Castledawson)

 B? Hillhead Road

 (current A6)


2.0 km / 1.2 miles - 2+2 lanes

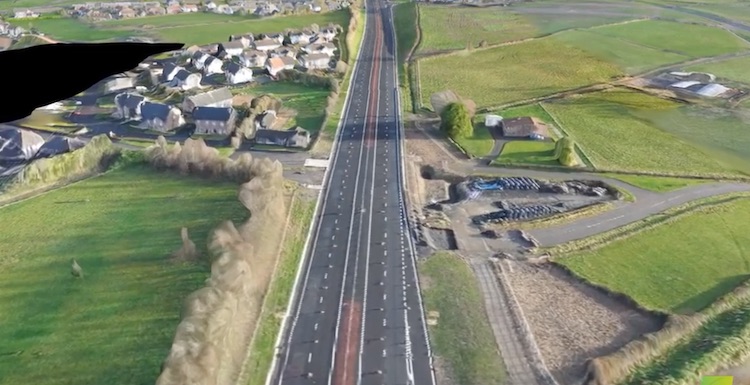

BELLSHILL ROAD  /

ANNAGHMORE ROAD

Linking to

Bellshill Road

Local access


Link to Annaghmore Road


1.2 km / 0.7 miles - 2+2 lanes

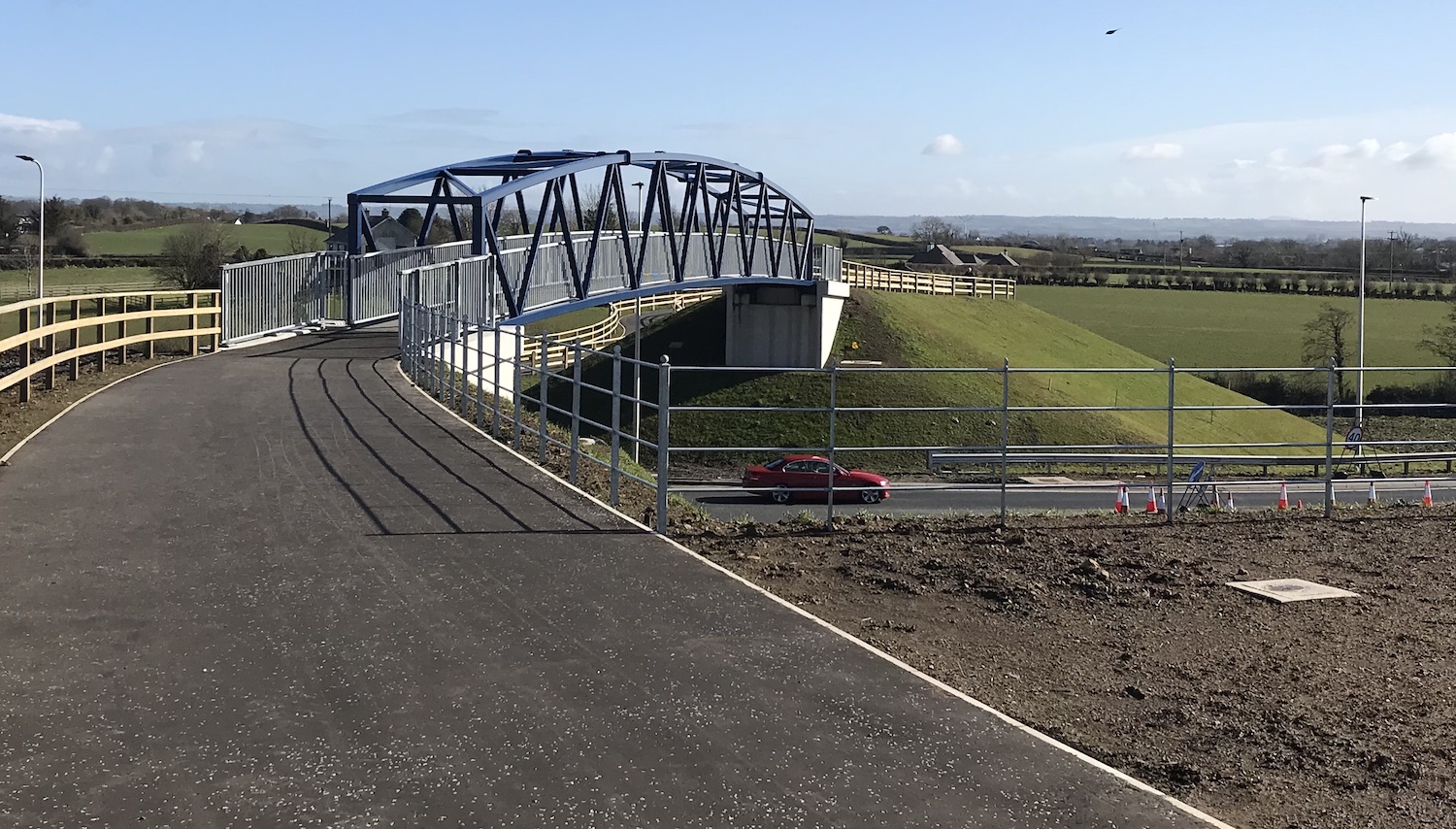

CASTLEDAWSON

A54 Magherafelt Rd

(into Castledawson)

 A31 Magherafelt Road

 (to Magherafelt)



WEST

Terminates as A6 towards Londonderry

Progress

21 Apr 2018: From the point of view of the travelling public, considerable change has been evident in the past two weeks. Firstly, the bridge beams for the Randalstown West grade-separated junction (Artresnahan, at the end of the M22 motorway) were lifted into place during a weekend closure on 13-15 April. The bridge consists of two spans, the central pillars of which occupy what was the westbound carriageway of the M22, hence why the M22 reduces to one lane each way further back. Each span consists of five 30 metre beams, each weighing 60 tonnes, meaning a total of ten beams were lifted over the weekend. The pictures below were taken from a DFI tweet and show the beams in place. Great work by the contractor. A further 15 bridge beams for the widened bridge over the Moyola River near Castledawson were also lifted into place over the past week. Tomorrow (Sunday) will see the installation of the deck of the new footbridge over the Toome Bypass at Drumderg roundabout, which is to provide pedestrian access to the relocated park-and-ride site. The concrete bridge pillars are already in situ, but the deck itself is a steel arch structure which is already on site, ready to be placed atop the pillars. The pictures below of this bridge are taken from another DFI tweet. The other obvious change for the public is the creation of a new roundabout at Derryhollagh Road between Toome and Randalstown. This may be a nuisance, but is required to facilitate the safe access to the side road for construction vehicles on this very busy, bendy road. The roundabout will be removed at a later date. Finally, a reminder that you can get up-to-date information on the works at the contractor's own web site.


Pic 1: View of the Randalstown West overbridge a few weeks ago showing the pillars under construction in what was the westbound carriageway of the M22. View is looking east. [DFI from here]


Pic 2: Similar view to picture 1 on 16 April 2018, showing the ten bridge beams in place at Randalstown West, along with associated falsework on either side to facilitate construction workers. [DFI from here]


Pic 3: A heavy-duty crane finishing up at Randaltown West on 16 April 2018. In total the ten bridge beams that have been installed weigh 600 tonnes and will have taken the same number of specialist lorries to bring them to the site. [DFI from here]


Pic 4: View looking south across the Randalstown West overbridge with the bridge beams in place. The concrete walls closest to the camera are the wing walls of the bridge abutment, with the black material being a waterproofing layer on the section that will be below ground level when the bridge is completed. The people give the scale of this impressive structure. [DFI from here]


Pic 5: One of the spans of the Drumderg footbridge sitting beside the A6 last week ready to be craned into position on 22 April. The man on the left is standing on the pillar for the main span, with the smaller cylindrical pillars being for the approach ramp. [DFI from here]


Pic 6: A smaller prefabricated bridge section waiting beside the pillar that will support it once it carries pedestrians over the A6 Toome Bypass, visible beyond. [DFI from here]

3 Apr 2018: The past fortnight has seen another milestone on the construction of this new road, and that is the commencement of work on the stretch from The Creagh to Hillhead Road. Work on this stretch had been delayed initially by an unsuccessful legal challenge, and then by the environmental requirement not to carry out major works in this area during the swan overwintering season. However this restriction ended in mid March and work has now commenced on the stretch - a milestone as it means that work is finally underway on all parts of the scheme. Matthew Cole took some photos of these earthworks advancing away from The Creagh four days ago and posted them here on Twitter. An aerial YouTube video of the same area uploaded on 29 March can be viewed here. Work has now been underway for ten months and progress continues to be excellent. About a fortnight ago the beams for the Ballynafey Road overbridge were craned into position. This is reported on the contractor's own web site, which is being regularly updated with lots of interesting information and photos and is well worth bookmarking. According to that web site, the bridge beams for the Randalstown West overbridge (at the end of the M22) are scheduled to be lifted into place between 13 and 16 April, requiring a weekend closure of the A6 here. Two other lifts planned in the near future are the beams for the widened bridge over the River Moyola (11-13 April) and the installation of the footbridge that is currently under construction at the start of the Toome Bypass at Drumderg roundabout.

13 Mar 2018: Last weekend saw a great deal of excitement on the scheme with a major beam lift taking place at Bellshill Road on the Castedawson Bypass. The flyover requires 8 reinforced concrete beams, 4 each on two spans, that will carry Bellshill Road over the new dual-carriageway. The beams are so large that they require a lorry each and they were seen parked up at the end of the M22 near Randalstown the week prior to the lift. The A6 at Castledawson was closed over the weekend and the beams were carried along the Moneynick Road via Toome (spotted by one eagle-eyed infrastructure fan) on Friday night. The lift itself seems to have had perfect weather and all eight beams were firmly in place by the time the road reopened. Several more infrastructure fans photographed the lift and the outcome. The pictures below are DFI photos and show the result. For safety and efficiency the four outermost beams had their falsework (temporary construction platforms) already bolted on prior to the lift. Thank you to all the people who tweeted updates and sent me photos - it is great to see how many people out there are interested in this project. Well done to the contractor.


Crane lifting one of the beams for Bellshill Road into place c10 Mar 2018. This beam has the temporary falsework already bolted on ready for construction of the deck above. [DFI photograph taken from this tweet]

View of the four beams making up one of the two spans of the Bellshill Road flyover following the beam lift, c10 Mar 2018. Work will now focus on completing the deck above. [DFI photograph taken from this tweet]

The job completed - eight beams successfully in place at Bellshill Road, c10 Mar 2018. The current A6 Castledawson Bypass is in the foreground, which is to be upgraded to full dual-carriageway with one carriageway passing under each span. [DFI photograph taken from this tweet]

20 Feb 2018: Work continues well on both halves of the scheme. On the entirely offline Randalstown to Toome stretch work has been focused on building culverts for the numerous watercourses on the stretch, and creating large cuttings and embankments to allow the road to traverse the hilly terrain. This computer-generated aerial video, put up by the contractor on 19 Feb, shows a typical 1.5 km stretch of the new road showing all these features. The road is designed to have a cut/fill balance, ie material cut from one place is used as fill elsewhere. However it often happens that the fill is needed before the cuts are done, or that the fill needs to be of a different type than the material sourced from the cuts. This problem is resolved by taking rock out of a "borrow pit", which is later filled in again with fill. Borrow pit "K", located close to Moneynick Primary School, has seen explosives used to blast out the rock. You can see a video of a blast (from last December) here with the blast happening at 00:17, and an aerial video of how borrow pit K looked this week here. Blasting in another borrow pit is close to the current A6 meaning the road has to be shut for 30 minutes during blasting. At the tie-in to the end of the M22 at Randalstown, construction of the future flyover is underway, with all traffic shifted over to one side to make space for the work. At the Toome end, work to enlarge the 14 year old Drumderg roundabout is also well underway. This aerial movie shows the current state of works with the curved road at the top left of the video (at the very start) being the new bit of road that will allow the existing Moneynick Road to be accessed once the dual-carriageway opens. A footbridge is also being built over the start of the existing Toome Bypass in order to provide access to the new park-and-ride facility which will be sited on the far side of the roundabout. On the partly online Toome to Castledawson stretch, intense work is taking place to widen the existing Castledawon Bypass (itself opened in 1992). This involves two major bridges - a flyover at Bellshill Road, and widening the bridge over the Moyola River. Because the route on this stretch is literally on top of the existing road, we are currently experiencing a series of unavoidable weekend closures that began on 26 January and will disrupt Belfast-Derry traffic until at least mid March. This aerial video begins at the Moyola Bridge and then heads east, and shows progress as of last week. You can see the proximity of the works to the existing road. At 00:15 in the video you can see the route of the new dual-carriageway heading offline to the left. This is the start of the offline stretch that passes near Lough Beg. Work on this stretch is currently paused due to overwintering swans, but is due to commence within the next couple of months. Work has now been underway on the project for 9 months. With thanks to David Chambers for a correction to the borrow pit identifications.

7 Jan 2018: December saw low temperatures and a lot of snow, but it didn't stop the contractors (Graham Farrans Joint Venture) who installed the first bridge beams on the scheme in the middle of the month. The beams were for an overbridge that will carry Derrygowan Road over the new dual-carriageway between Toome and Randalstown. The photos below were taken from the Department for Infrastructure's Twitter feed. They show how the bridge consists of two abutments, plus a set of central columns in what will be the central reservation, creating two spans. The precast concrete beams were put in place over the course of two days, five for each span. The scale of these beams is enormous - the first photo shows that they are so large and heavy that they require a lorry each! The contractor has put up an article on the lift on their new dedicated web site here. The new web site for the scheme can be accessed at www.a6rcdualling.co.uk which contains updates and photos and well worth checking out. It is also worth watching two movies on YouTube which are computer-enhanced flythroughs of the scheme as it looked in mid December. The first movie, here, starts at Castledawson Roundabout and travels 4km east to near Toome. Beyond this, in the vicinity of Toome, there is currently a moratorium on major earthworks taking place due to overwintering swans, but this will cease to be a restriction in March at which point earthworks can commence here too. The second movie begins at Drumderg roundabout east of Toome (note the new footbridge over the Toome Bypass being built at 00:04) and goes 7km east, all the way to Randalstown. Derrygowan Road bridge appears at 02:12, though the video was made before the beams were in place. At the end of the scheme, you can see the foundations of the bridge at the future grade separated junction at the end of the M22 at 02:48. Work has now been underway for seven months, with three years to go until completion of the whole project.


A single precast reinforced concrete beam arrives by lorry at Derrygowan Road in mid December 2017. [DFI from here]

After being unloaded, a 500 tonne crane lifts the beam ready to swing it over to its new home over the future dual-carriageway near Derrygowan Road in mid December 2017. [DFI from here]

Graham Farrans Joint Venture engineers place the beam in its place, in this case forming part of the northern bridge span. Derrygowan Road currently runs on the left, but will be rerouted over this bridge once it's finished, and the new A6 will run underneath. Taken in mid December 2017. [DFI from here]

The beam in place, forming the second of five beams that will make up the northern span of the Derrygowan Road overbridge. The five beams for the southern span are already in place ahead. Taken in mid December 2017. Note the cutting heading off into the right distance, which will be the route of the new dual-carriageway. [DFI from here]

30 Nov 2017: A very quick update to share another aerial movie which has been posted on YouTube by JUPE, showing progress on the Castledawson Bypass around a month ago (apologies for the delay in posting this). At time index 0:55 you an see a good top view of the new Bellshill Road/Annaghmore Road grade separated junction with the foundations of the bridge piers now in place. On the rest of the scheme work seems to be progressing well, though delays on the westbound M22 at Randalstown due to the roadworks continue to cause considerable delays and consternation on social media.

14 Oct 2017: The scheme has now been underway for about 5 months, and there has been a lot of progress at some points. I have 6 photos to share this time, the first 3 of which are with thanks to the contractor Graham/Farrans and the second 3 of which are with thanks to John Toner, who took aerial photos from a drone. The first three pictures below were taken on the Randalstown-Toome stretch where work to date seems to be focused on major earthworks, in particular a very large excavation. I am not 100% sure whether this is a cutting or the road itself, or whether it is some kidn of 'borrow pit', but either way it looks to be at least 20 metres deep. The second set of images show works on the Castledawson Bypass at the western end of the scheme. This road only dates back to the mid 1990s but is being upgraded to dual-carriageway standard as part of the scheme. This includes a major junction with Bellshill Road which looks very advanced with most of the approach embankments now in place. Work appears to have begun on the foundations for the flyover at its centre. Work on the second bridge over the Moyola River (adjacent to the existing structure) is more advanced with work on the two abutments well underway. Working close to the River involves a lot of environmental constraints - for example, it appears that the contractor cannot operate machinery in the river itself, as would have happened in years gone by. Finally, a video has appeared on YouTube showing aerial views of a range of locations but showing the Castledawson Bypass around 3:00.


Heavy plant using a temporary access road on the A6 scheme between Randalstown and Castledawson c21 Sep 2017. This road has been made from rock covered with earth to allow machinery to access the various parts of the site. [Graham Farrans]

Excavation work underway between Randalstown and Castledawson in late September 2017. [Graham Farrans]

Very deep excavation underway about half way between Randalstown and Castledawson. This is either a deep cutting for the road, or a borrow pit (to get material to construct embankments elsewhere). c21 Sep 2017. [Graham Farrans]

Work underway on 1 Oct 2017 to build a second crossing of the River Moyola on the Castledawson Bypass near the western end of the scheme. As far as I am aware, the existing bridge will be re-used for the future eastbound carriageway. [John Toner]

Bellshill Road grade-separated junction on the Castledawson bypass taking shape on 1 Oct 2017, looking west. Both current T-junctions will be closed and replaced by a flyoer around the middle of this shot. On the left is a new embankment that will support a roundabout. The earth road at the bottom of the shot is a temporary access road. [John Toner]

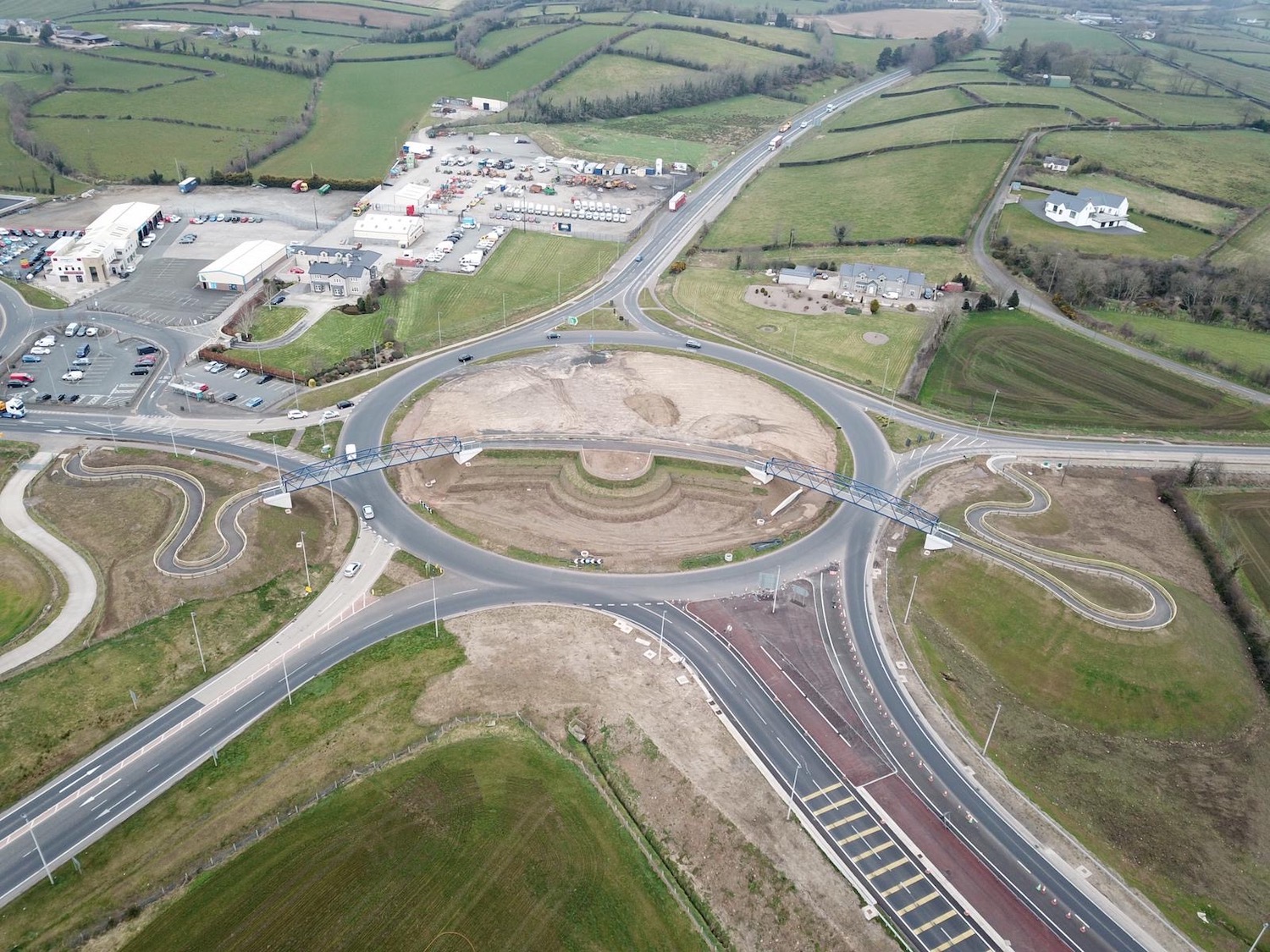

The western terminus of the scheme at the Castledawson Roundabout, looking east on 1 Oct 2017. Two interesting things to see here - firstly the recently-compelted A31 Magherafelt Bypass is heading off to the right. Secondly, note the very wide area of earth to the right of the A6 approaching the roundabout in the centre of this shot. This embankment is only a couple of hundred feet long, but dates back to the construction of Castledawson Roundabout in the early 1970s and was this wide because it was intended to be the terminus of the M22 motorway, which was never completed to its intended terminus here. Part of it was re-used for the A6 Castledawson Bypass in 1992, but the new dual-carriageway will cover the remainder. [John Toner]

19 Sep 2017: Today saw the ruling on the appeal by environmentalist Chris Murphy to the judicial review that he lost in March. He was challenging the legality of the DFI's environmental assessments on the section of the road between Toome and Castledawson (the legally contested stretch being specifically the stretch from the western end of the Toome Bypass to Deerpark Road). In the event the judges dismissed all of Mr Murphy's points and ruled that the DFI had correctly complied with relevant environmental legislation. The summary judgement is available on the Courts Service web site here. Notably the judges expressed the view that a delay of several years between a project being approved and work commencing (as was the case here and which Mr Murphy felt necessitated a further assessment) is not unreasonable: "The Habitats Directive imposes no time constraint on the duration of an appropriate assessment and in the case of major infrastructural projects there is often a likelihood of some time lag between authorization and implementation of the project. DFI, for their part, immediately welcomed the ruling in their favour with a press release. Mr Murphy has the option of attempting to appeal to the Supreme Court and has indicated that this is an option he will consider.

In their press release DFI says "As a result of the judgement the Department will commence construction of the Toome to Moyola River section of the scheme which had been delayed due to the legal challenge". By way of background, DFI had previously agreed not to begin major works on the stretch from Toome to the Moyola River in Castledawson, so works undertaken to date have been restricted to the Randalstown to Toome stretch, and the bit west of the Moyola River. The map below illustrates the situation with the works already underway shown in dark blue. The ruling means that DFI are now free to begin work on the Toome to Moyola stretch. However, a complication is that the Environmental Statement imposes a restriction that major earthworks (note, not "all" works) cannot take place between Deerpark Road and Toome between late September and mid March. This is for environmental reasons and is not directly related to the legal challenge. I would define "major earthworks" to be anything that involves constructing the bed of the road itself, so I would consider embankments, cuttings or bridges to be "major earthworks". DFI have not said when they intend to start work, but having now successfully defended two legal challenges I would say they will be in no mood for further delay and so I would expect to see work begin on the Moyola River to Deerpark Road stretch within days. We are likely also to see minor works commencing on the contested Deerpark Road to Toome stretch in the coming weeks (eg vegetation clearance, fencing etc), but we will not see major earthworks until mid March due to the restrictions of the Environmental Statement. Again, the map below attemps to summarise this and help make sense of all these different stretches.


Status of the A6 dualling scheme as of 19 Sep 2017.

5 Sep 2017: Progress on the scheme seems to be going very well. This update by Farrans (one of the contractors) shows some closeup images of the work underway, including a deeper excavation - it's hard to tell from the image but this is either a cutting for the road itself, or else some kind of borrow pit for sourcing material. Either way good weather during the summer seems to have helped. Meanwhile, a court hearing took place on 15 August. This is an appeal by environmentalist Chris Murphy to the judicial review that he lost in March. He is challenging the section of the road between Toome and Castledawson. The judges reserved their judgement, which was then due to be given yesterday, but has apparently been delayed to sometime "later in the week". The substance of the appeal appears to be Mr Murphy's argument that the environmental assessments were out of date and did not take into account more recent considerations and environmental legislation. DFI Roads obviously defended their assessments vigorously. Originally the verdict was to have been given on the same day, so the decision to reserve judgement tells us that the verdict is not straightforward. This implies to me that Mr Murphy has at least got an arguable case. Regardless of the strong desire by many, especially in the North West, to have this road built, the judges will decide the case on the immediately relevant legal facts only. My (admittedly only superficially informed) impression of the case is that it could go either way. Both sides in the case do, of course, have options for further appeals (eg the Supreme Court or even the European Court) so whether DFI win or lose, this saga could be far from over. If, hypothetically, DFI were to lose then it would probably mean going back to square one in terms of route selection and environmental assessments which would add a period of years, rather than months, to the completion of the delayed section between Castledawson and Randalstown. Finally, the works have required a lane closure at the western end of the M22 which has caused significant tailbacks westbound in recent days. This is slightly puzzling as the road always went down from two lanes to one at the end of the M22, it is just the location that has changed. Perhaps someone in DFI Roads more familiar with the setup might be able to see if anything could be done to ease the merge as it is going to last several months.

For updates prior to September 2017 please see the archive.
